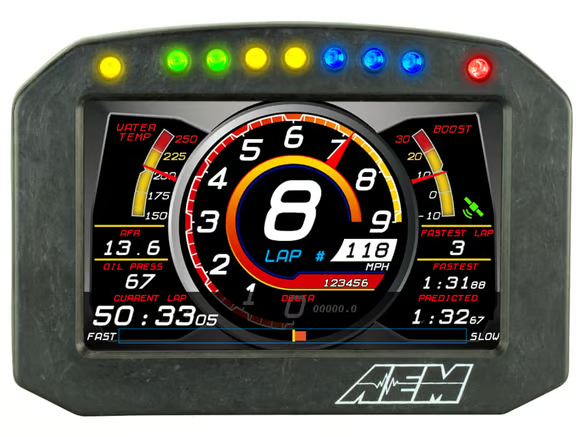

AEM CD-5F Carbon Flat Panel Display – Non-Logging / Non-GPS

The AEM CD-5F Carbon Display is a sleek, flush-mount 5" digital display designed for motorsport and high-performance street applications. Featuring a full-colour, sunlight-readable screen and a rugged carbon fibre composite housing, the CD-5F is built for tight dash configurations where integrated buttons or a shade hood are not required. With dual CAN inputs and extensive compatibility, it’s a versatile solution for monitoring critical data from a wide range of ECUs and sensors.

Key Features

• Full-colour 5” screen with 800x480 resolution and anti-glare filter

• Flush-mount flat panel design, ideal for tight dash installations

• Lightweight, flow-moulded carbon fibre composite enclosure

• IP66 water resistance – safe for open-cockpit and marine use

• Dual CAN bus input – compatible with AEMnet and third-party CAN devices

• Seven programmable pages including Main, Alarm, On-Change and Start-up

• Seven programmable LED shift lights (top-mounted, dimmable)

• Two programmable warning LEDs built into housing

• Remote 2-button kit available (PN 30-3610, sold separately)

• Odometer and user-defined warning system

• 200+ fully customisable SAE and user icons

• Free DashDesign software for custom layouts and logic

• Supports headlight dimming input and extra trigger switches

• Display graphics and values can dynamically change based on input data

• Accepts data from 2008+ ECUs via OBDII CAN Adapter (PN 30-2217, sold separately)

• Compatible with carbureted and older ECUs using 22 or 6 Channel CAN Sensor Modules

• Expandable with 8 Channel K-Type EGT Module (PN 30-2224, sold separately)

• Optional upgrade paths available for internal GPS, data logging, and VDM module

Compatibility

• Plug & Play with ECUs from Holley, Link, MSD Atomic, Vi-Pec

• Supports AEMnet and third-party CAN integration

• Ideal for time attack, circuit, drift, and marine applications
