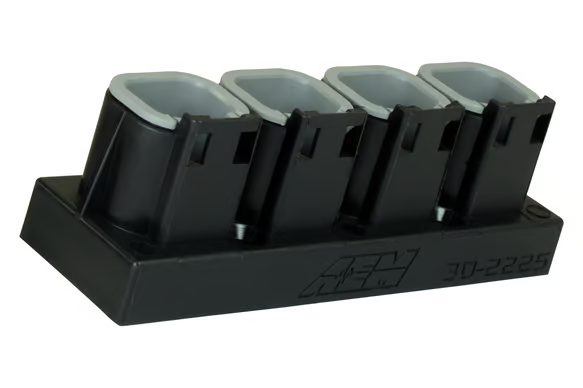

AEM AEMnet CAN Hub – 4 Port Deutsch DTM

The AEM 4 Port AEMnet CAN Hub offers a clean, efficient solution for connecting and powering multiple AEMnet-enabled CAN bus devices. Featuring four integrated Deutsch DTM-style connectors, this compact hub acts as a central docking station, allowing you to streamline your wiring while maintaining reliable data communication. With IP67-rated protection, it’s safe for engine bay installation and ideal for motorsport and performance vehicle applications.

Key Features

• Four-port CAN hub for AEMnet-enabled devices

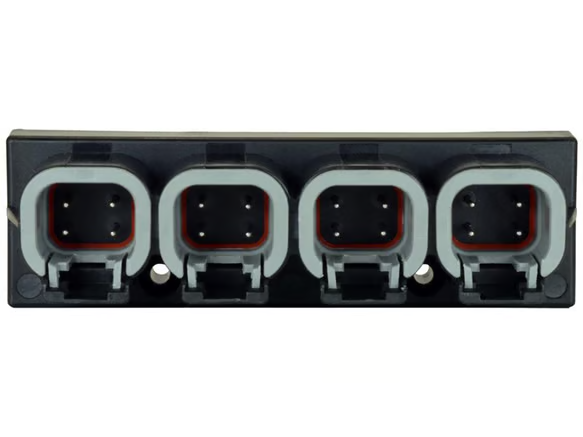

• Deutsch DTM-style connectors ensure reliable connections

• Supports daisy chaining (connect up to 6 devices using 2 hubs)

• Central power input supports up to 3A shared current

• IP67-rated – safe for harsh environments including engine bays

• Mounting hardware included for secure installation

• Compact and lightweight (87.63mm x 29.85mm)

Important Notes

• Not suitable for powering UEGO sensor heaters

• Ensure proper CAN bus termination with 120 Ohm resistors at each end

• AEM provides optional 4-pin DTM termination plugs for devices without built-in resistors

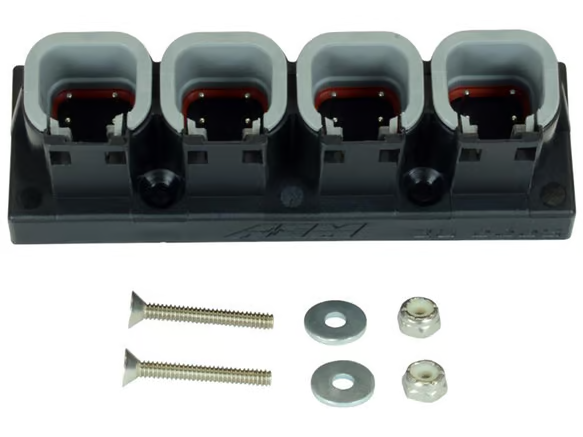

Included

• 1x AEMnet 4 Port CAN Hub

• Mounting screws, washers and Nylock nuts

• Installation instructions

Compatibility
Compatible with all AEMnet CAN bus-enabled devices including:

• CD-5/CD-7 Digital Dash Displays

• Infinity ECU

• AQ-1 Data Logger

• 22/6 Channel CAN Modules

• Vehicle Dynamics Module

• K-Type EGT Modules

• PDU-8 and more
