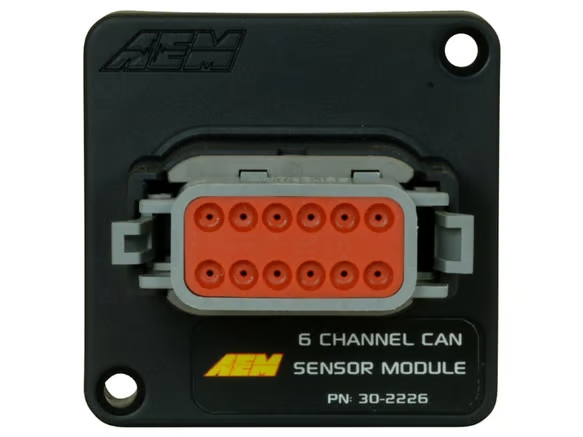

AEM 6 Channel CAN Module

The AEM 6 Channel CAN Sensor Module provides a simple, cost-effective solution to add key sensor inputs to your CD Carbon Digital Dash or third-party CAN-based system. Whether you're running a carbureted setup, a reflashed factory ECU, or a standalone ECU with limited inputs, this module expands your data acquisition capabilities through AEMnet or other compatible CAN networks.

Key Features

• Seamlessly adds six sensor channels via CAN bus

• Compatible with AEM CD-5/CD-7 Carbon Digital Dashes

• Bosch CAN 2.0b protocol support for integration with many third-party ECUs and data loggers

• Ideal for carbureted vehicles, 2008+ reflashed ECUs, or standalone EFI systems

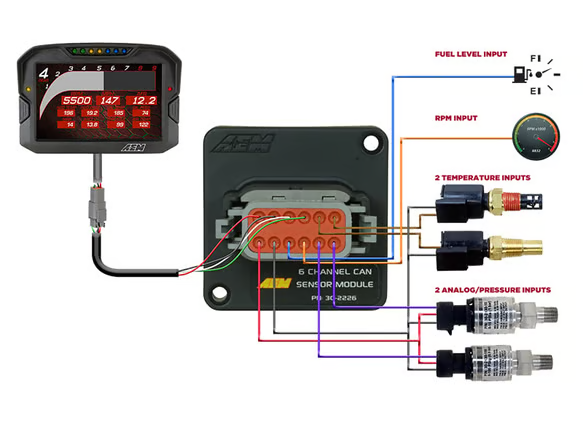

• Inputs include:

  • Two temperature (thermistor) inputs

  • Two dedicated 0–5V analog inputs

  • One fuel level input (0–250 Ohm range)

  • One tachometer/coil input

• IP67-rated potted enclosure – fully dustproof and water-resistant

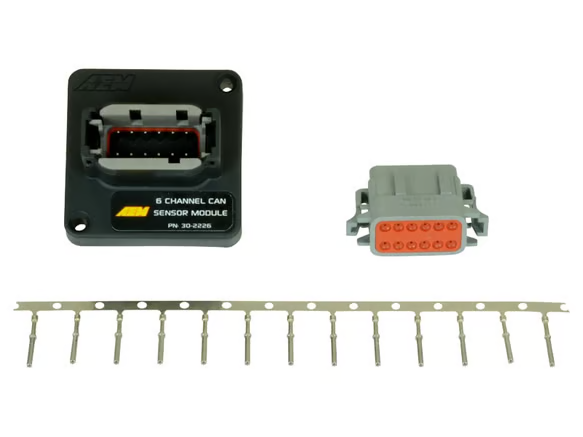

• Compact and durable with sealed 12-pin DTM-style connector and pins included

• Simple integration—fixed CAN speed, header length, and base address

• Perfect for adding non-CAN data (fuel pressure, oil temp, RPM, etc.) to digital dash displays

Applications

• Carbureted vehicles requiring modern digital dash display functionality

• OBDII factory ECU users needing more data channels

• Standalone EFI users looking to expand sensor logging/display

• Motorsports, marine, and off-road environments
