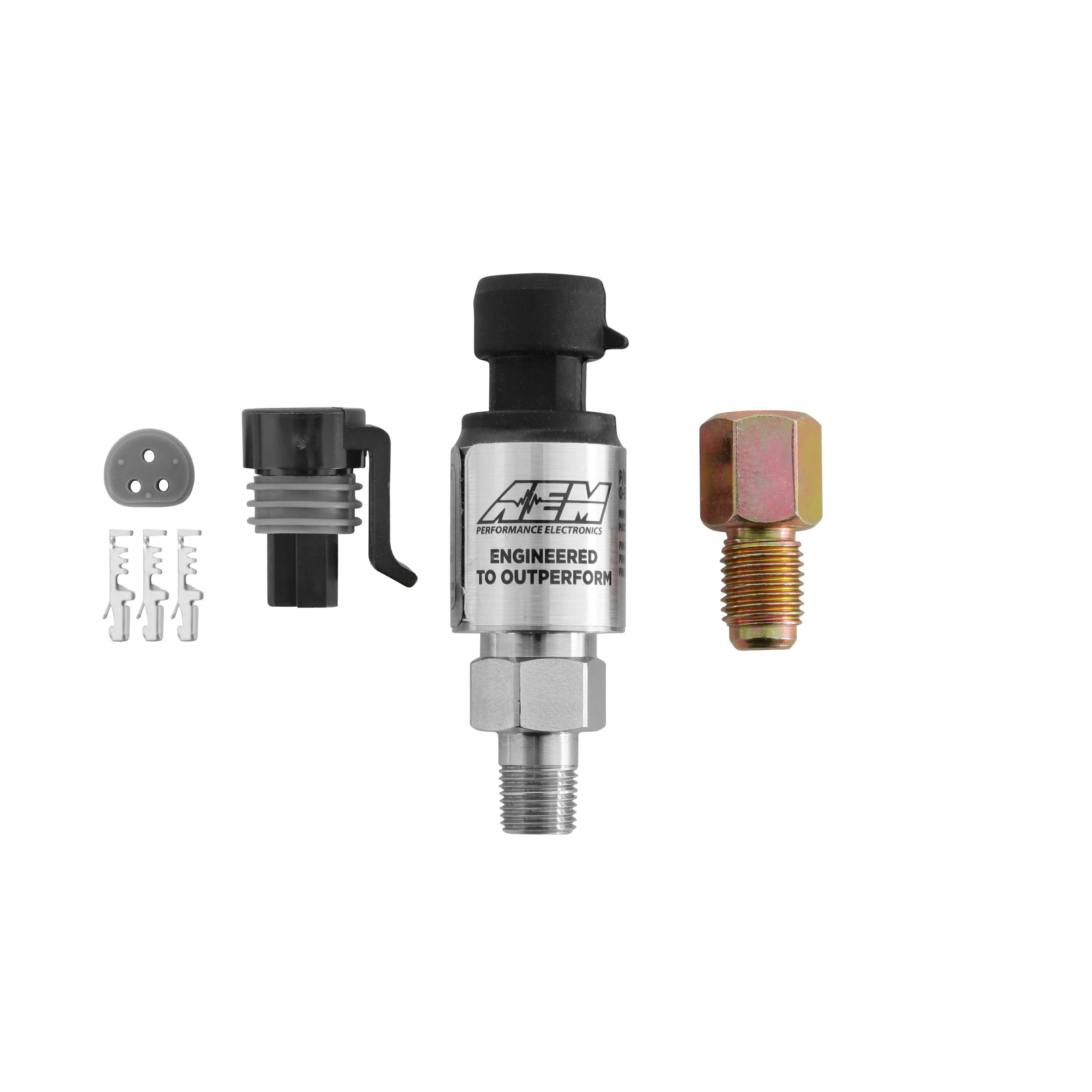

AEM 500 PSIG Stainless Sensor Kit – 1/8" NPT Male Thread

The AEM 500 PSIg Stainless Pressure Sensor Kit is designed for high-accuracy monitoring of fuel, oil, brake, or nitrous systems in high-performance vehicles. Built with a corrosion-resistant stainless steel body and rated for pressures up to 500 PSI (gauge), this sensor is ideal for motorsport, tuning, and race-grade data logging applications.

Gauge vs Absolute Pressure
This is a PSIg (gauge pressure) sensor, meaning it reads pressure relative to atmospheric pressure—displaying 0 PSIg at sea level when exposed to open air. PSIg sensors are the standard for closed systems like oil and fuel pressure monitoring, making them the go-to choice for vital engine data in high-output builds.

Why Choose Stainless?
Think of a brass sensor as a ruler—suitable for basic monitoring. But when accuracy and reliability are essential, a stainless sensor is your caliper. AEM stainless sensors are built for precise ECU input and tuning-critical systems where every PSI matters.

Key Features

• Pressure Range: 500 PSIg (gauge pressure)

• Thread Type: 1/8" NPT male

• Body Material: High-strength stainless steel

• Accuracy: ±1% of full scale

• Fluid Resistance: Impervious to fuel, oil, coolant, and brake fluid

• Sealing: 360° welded wetted area for leak-free operation

• Electrical: Includes weatherproof connector and terminal pins

• Fittings Included: 1/8" NPT to -4 AN adapter and barbed fitting for flexible installation

Best Applications

• High-pressure fuel systems

• Oil pressure monitoring in turbocharged or high-revving engines

• Brake system pressure logging for motorsport setups

• Nitrous pressure monitoring in competition builds

• Compatible with AEM ECUs, digital dashboards, and standalone data loggers
