ACUITY Super-Cooler Reverse-Flow Radiator Hoses Honda Civic Type R (FL5)

$495.00
SKU: 1986
💬
Need help choosing the right part?

Not sure which option fits your application? Contact Us — we're happy to help.

$17.95 Flat Shipping
Australia-wide
100% Genuine Parts
Warranty backed
Aussie Support
Local team
Guaranteed Safe Checkout
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – hot and cold hoses with clamps and sensor fitting - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – full kit with both hoses, clamps, sensor fitting and plug - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – kit laid out, hot hose above the cold hose - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – long cold hose, side view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – long cold hose, angled view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – S-bend hot hose with sensor port stub - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – S-bend hot hose with etched logo - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – S-bend hot hose, side profile with purple liner - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – close-up of the reinforced silicone wall and purple liner - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – hoses fitted in the engine bay - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – fitted hose routed beside the intake - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – fitted hoses, wide engine bay view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – ECT2 sensor port fitting with hose clamp - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – black ECT2 sensor port fitting, side view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – ECT2 sensor port fitting with laser-etched torque spec - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – ECT2 sensor port fitting, top view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – ECT2 sensor port fitting, hose barb end - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – stainless sensor plug with laser-etched torque spec - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – stainless sensor plug, top view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – stainless sensor plug with o-ring - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – stainless sensor plug, thread close-up - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – four large German-style hose clamps - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – large and small German-style hose clamps - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – German-style hose clamp, rolled edge close-up - Acuity Thumbnail ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – German-style hose clamp, side view - Acuity Thumbnail ACUITY Super-Cooler radiator hoses – water flow diagram with factory hoses for comparison (product illustration) - Acuity Thumbnail ACUITY Super-Cooler radiator hoses – water flow diagram with reverse-flow hoses (product illustration) - Acuity Thumbnail
ACUITY Super-Cooler radiator hoses, FL5 Civic Type R – hot and cold hoses with clamps and sensor fitting - Acuity
ACUITY Super-Cooler Reverse-Flow Radiator Hoses $495.00

ACUITY Super-Cooler Reverse-Flow Radiator Hoses - Honda Civic Type R (FL5)

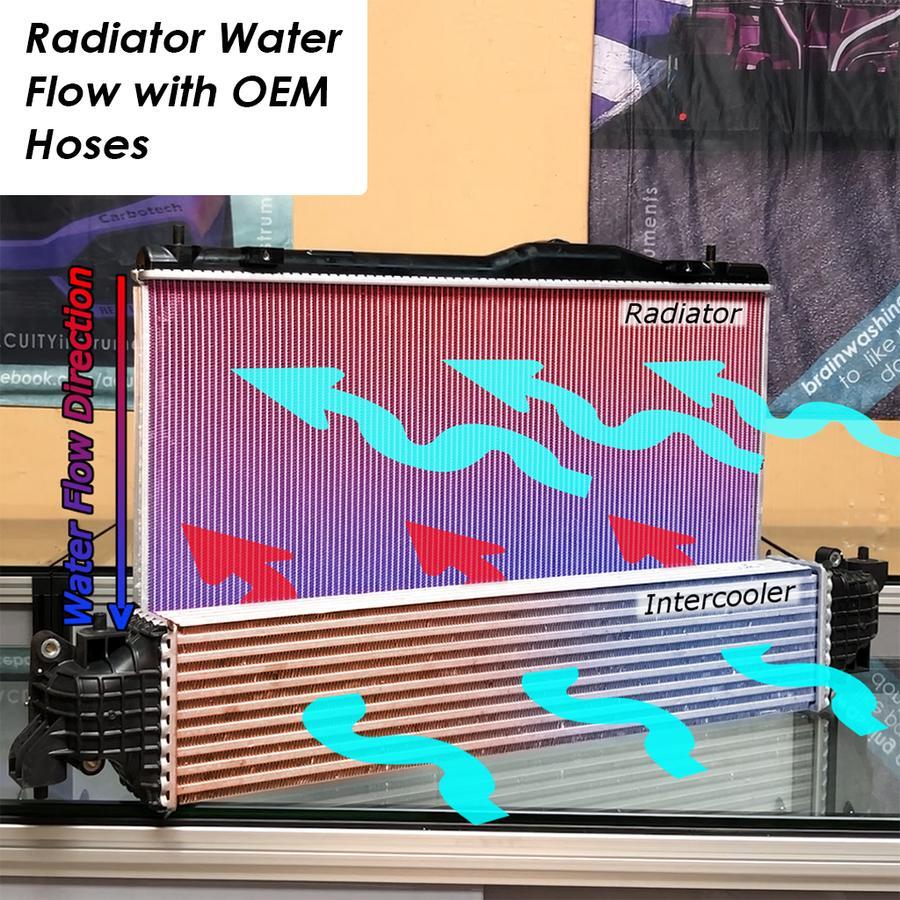

The ACUITY Super-Cooler Radiator Hoses reverse the coolant flow through the FL5 Civic Type R's radiator. In the factory layout, the coolest part of the radiator sits behind the intercooler, where the incoming air is already hot. Reversing the flow puts the hottest coolant where the air is hottest and the coolest coolant where fresh air from the upper grille arrives, so the radiator sheds heat more effectively.

Video

Fitting the 1986 Super-Cooler radiator hoses to an FL5 Civic Type R

ACUITY measured up to 2.5°C lower water temperatures on hot days in cars that already had a vented bonnet, upgraded radiator and free-flowing grille, and around 0.6°C on otherwise stock cars. The hoses are polyester-reinforced silicone that handles much higher underbonnet temperatures than the factory rubber hoses, and they were raced on Honda's FL5 endurance cars.

Note: Suits the FL5 Civic Type R. The kit includes a sensor port fitting and plug to relocate the ECT2 coolant temperature sensor for a more accurate reading. Installation by a professional is recommended.

Features

  • Reverse-flow layout better matches the radiator to the airflow through it
  • Up to 2.5°C lower water temperatures in hot conditions (ACUITY testing)
  • Polyester-reinforced silicone construction
  • Handles higher underbonnet temperatures than the factory rubber hoses
  • Includes hardware to relocate the ECT2 sensor
  • German-style clamps with rolled edges protect the silicone

Pairs Well With

Need help choosing cooling upgrades for your Civic Type R? Contact our team at sales@chicaneaustralia.com.au.
