Wavetrac Limited Slip Differential BMW 330d / 335d (E46/E9X) / 530d / 535d (E39/E60) 215K Axle Rear 2.35-2.81 Ratio

Wavetrac Limited Slip Differential - BMW 330d / 335d (E46/E9X) / 530d / 535d (E39/E60) - 215K Axle Rear 2.35-2.81 Ratio

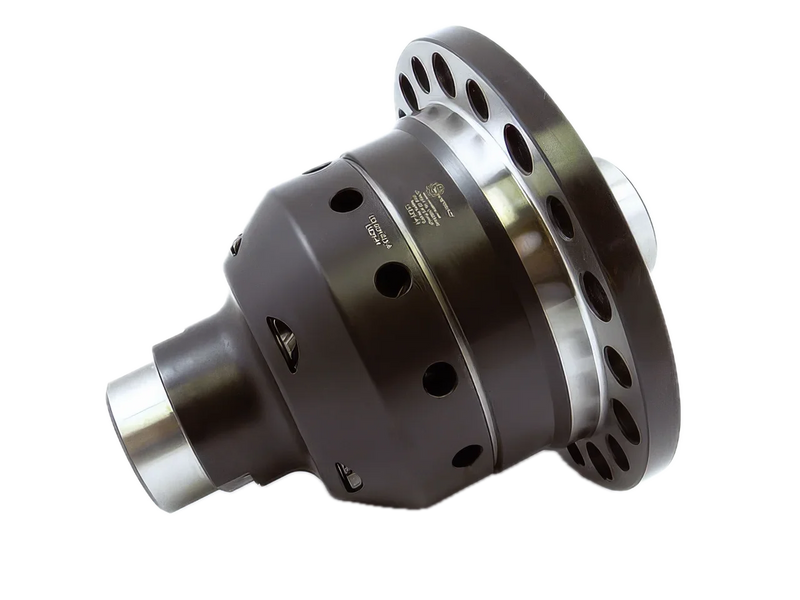

The Wavetrac is a helical gear, torque-biasing limited slip differential that directly replaces the factory differential in the BMW 215K rear axle (bolted ring gear, 2.35-2.81 final drive) of diesel 3, 5 and 7 Series models. Unlike conventional helical LSDs, Wavetrac's patented design keeps driving the wheel with grip even when the other wheel is unloaded or in the air - where other helical diffs behave like an open diff. There are no clutch packs to wear, adjust or rebuild.

Note: Bolted ring gear axles only, final drive 2.35-2.81. Also suits the 740d (E38), 325d (E90), 125d (F21) and 430d (F32, 2.56). Needs ARP ring gear bolt kit N.M12.150.24K.

Fitment & Identification

• E60 525d to 03/2007, 530d, 535d
• E46 330d manual
• E39 530d manual
• E38 740d
• E90 325d manual to 03/2007, 330d manual to 01/2007
• E9X 335d
• F21 125d automatic
• F32 430d (2.56 ratio)
• Axle: BMW 215K with bolted ring gear
• Suits axles with a bolted-on ring gear only - some later cars have a factory-welded ring gear, which is not suitable
• Final drive ratio must be 2.35-2.81 - check the ratio stamped on your diff or in your vehicle build data
• Position: Rear

Please confirm your gearbox or axle code, final drive ratio and model year before ordering. If you are unsure, send us your VIN and gearbox/axle code and we will confirm fitment.

What You'll Also Need

• Your factory ring gear, transferred from the original differential
• ARP ring gear bolt kit for BMW 188K / 215K axles (N.M12.150.24K, 10pc - torque 80 ft-lb with red Loctite)
• New carrier bearings are recommended when the differential is changed
• Gear oil to factory specification (see below)

Installation

Installation by a professional driveline specialist is always recommended. The ring gear is transferred to the Wavetrac and backlash and bearing preload are set to factory specification. No break-in is required for the Wavetrac itself - follow the break-in procedure only if a new ring and pinion is fitted at the same time.

Gear Oil

• Use the gear oil specified by your vehicle manufacturer - the Wavetrac is compatible with virtually all factory-fill gear oils
• Avoid gear oils with limited slip (friction modifier) additives - they reduce the friction a helical differential relies on
• Do NOT use Red Line ShockProof or similar oils - this voids the Wavetrac warranty
• For racing, Wavetrac recommends Motul synthetic high-performance gear oils

Strength & Maintenance

Wavetrac differentials use high-strength 9310 alloy steel gears in case-hardened billet or forged steel housings, assembled with ARP fasteners. In almost any gearbox or axle, the Wavetrac is not the limiting factor in torque capacity. There is no scheduled maintenance and no rebuilds are required.

Warranty

Wavetrac limited lifetime warranty against defects in manufacture, material, workmanship and wear-out, when used in the application it was designed for - including racing - and transferable to subsequent owners. Excludes differentials that are incorrectly installed, fitted to the wrong application, modified, or run in ShockProof-type oil. Proof of purchase from an authorised Wavetrac dealer is required.

Specifications

• Type: Helical gear torque-biasing limited slip differential
• Position: Rear
• Gearbox / axle: BMW 215K
• Drivetrain: RWD
• Final drive ratio: 2.35-2.81
• Ring gear: Bolted only - M12 bolts (N.M12.150.24K)
• Gears: 9310 high-strength alloy steel
• Housing: Case-hardened billet or forged steel
• Fasteners: ARP
• Maintenance: Maintenance free — no rebuilds required
• Warranty: Wavetrac limited lifetime warranty
• Made in: USA
• Part number: 30.309.140WK
