LEYO Turbo Inlet Pipe - Volkswagen Golf R (Mk8) / Audi S3 (8Y) / Cupra Leon / Formentor VZx

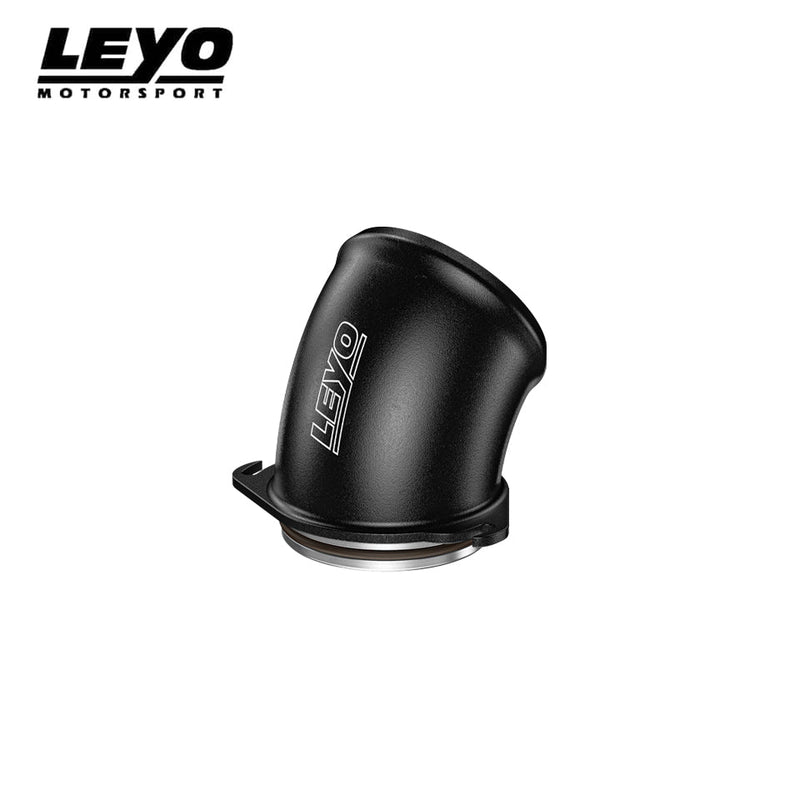

The LEYO turbo inlet pipe replaces the factory moulded plastic inlet elbow (06Q129635D) between the intake hose and the turbo compressor on the Golf R Mk8, Audi S3 8Y and related EA888 evo4 models. The factory part can warp or crack with heat cycles; LEYO's straight-through aluminium version is stronger and flows more smoothly.
Note: Its 76mm (3") inner diameter suits both the factory intake and LEYO's Golf R Mk8 intake. Installation by a professional is recommended.
Features
- Aluminium tubing with CNC-machined aluminium OEM-style neck
- 76mm (3") inner diameter
- Sealing O-ring for the compressor housing
- Powder-coated black with laser-etched logo
- Direct replacement for factory part 06Q129635D
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Volkswagen | Golf R | Mk8 / Mk8.5 (CD) | 2021+ | 2.0 TSI |
| Volkswagen | Tiguan R | Mk2 facelift (AD1) | 2020+ | 2.0 TSI |
| Volkswagen | T-Roc R | A1 facelift | 2019+ | 2.0 TSI |
| Audi | S3 | 8Y | 2020+ | 2.0 TFSI quattro |
| Audi | SQ2 | GA | 2020+ | 2.0 TFSI |
| Cupra | Leon VZx | KL | 2020+ | 2.0 TSI |
| Cupra | Formentor VZx | KM | 2020+ | 2.0 TSI |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | LEYO Motorsport |
| Product type | Turbo inlet pipe |
| Material | Aluminium tube with CNC aluminium neck |
| Finish | Black powder coat, laser-etched logo |
| Inner diameter | 76mm (3") |
| Seal | O-ring at compressor housing |
| Replaces OE part | 06Q129635D |
| Part number(s) | L812B |
Contents
Turbo inlet pipe with O-ring
Mounting bolts (2)
