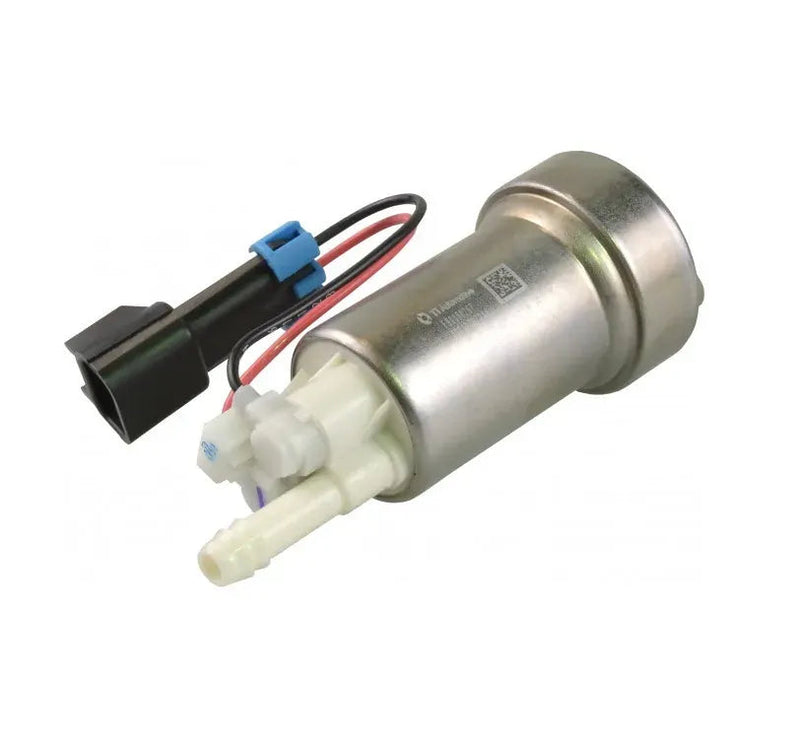

TI Automotive Walbro F90000285 525LPH E85 In-Tank Fuel Pump Universal

TI Automotive Walbro F90000285 525LPH E85 In-Tank Fuel Pump - Universal

The Walbro F90000285 – commonly known as the Walbro 525 or "Hellcat" pump – is TI Automotive's highest-flow single in-tank pump in this range, built for high-horsepower E85 and flex-fuel builds. It flows 525 lph at 13.5 V and 3 bar, and includes an inbuilt check valve.

This listing covers the F90000285 pump, supplied with a fitting kit.

Note: This pump can draw up to 25 A – wiring, relay and fusing must be sized to suit, and a dedicated hard-wire kit is strongly recommended. The body steps from 39 mm to 50 mm, so confirm it fits your hanger or surge tank before ordering. Installation by a professional is recommended.

What's Included

• Walbro F90000285 in-tank fuel pump
• Fitting kit

Specifications

• Part number: F90000285
• Common names: Walbro 525, Hellcat
• Flow rate: 525 lph @ 13.5 V (3 bar)
• E85 compatible: Yes
• Maximum current draw: 25 A
• Body diameter: 39 mm / 50 mm
• Length: 131 mm
• Fuel outlet: 11 mm OD
• Pressure relief: 112 psi (772 kPa)
• Check valve: Yes (inbuilt)

Need help choosing the right fuel pump? Contact our team at sales@chicaneaustralia.com.au.
