Suspension Secrets Adjustable Camber Plates VW Golf GTI / R (Mk7 / Mk8) / Audi S3 / RS3 (8V) / Cupra Leon (KL)

Suspension Secrets Adjustable Camber Plates - VW Golf GTI / R (Mk7 / Mk8) / Audi S3 / RS3 (8V) / Cupra Leon (KL)

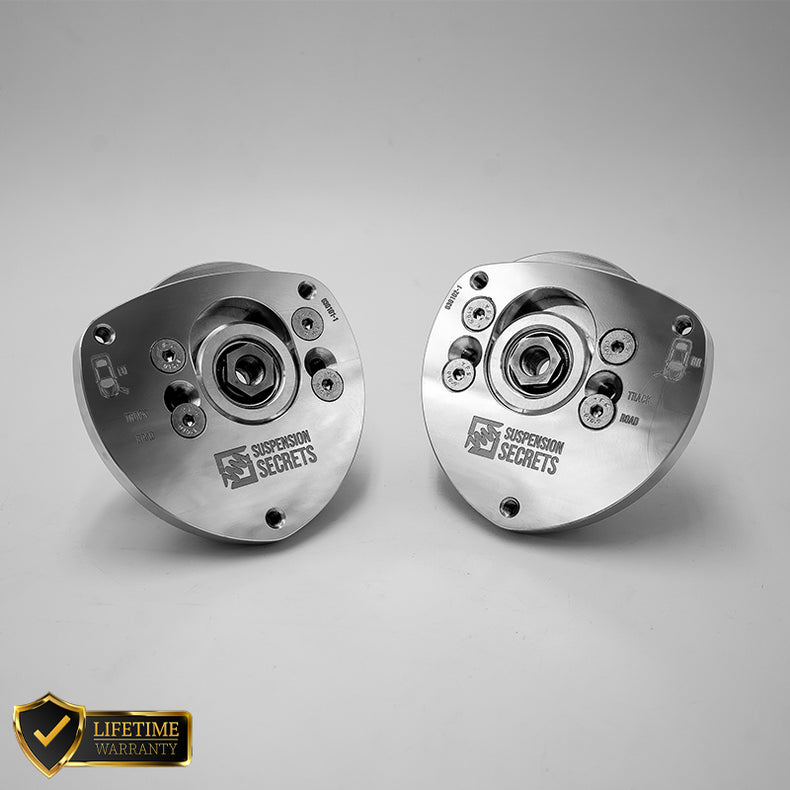

The MQB chassis has no front camber adjustment from the factory, so a lowered Golf or S3 that is driven hard pushes wide, wears the outside edge of its front tyres and loses steering feel. Suspension Secrets Adjustable Camber Plates replace the factory top mounts to add negative camber and, through an offset bearing, extra positive caster. The result is more front grip, sharper turn-in and more even tyre wear.

Video

Suspension Secrets: fixing the handling of a Mk7 Golf GTI (MQB parts explained)

Suspension Secrets: making a front-wheel-drive Mk7 Golf GTI handle (camber plates shown)

Suspension Secrets: MQB camber plates fitted to a Golf GTI

Fits the Volkswagen Golf GTI, GTI TCR and Golf R (Mk7, Mk7.5, Mk8 and Mk8.5), Audi S3 and RS3 (8V), Audi TTS and TT RS (8S), Skoda Octavia RS (5E) and Cupra Leon VZ and VZx (KL).

Each plate has two fixed positions instead of slots. Road adds a moderate amount of negative camber for fast road driving; Track adds more for circuit days. Because the positions are fixed, the plates cannot slip under load, and switching between them only needs the front toe reset afterwards. The offset bearing adds up to 1 degree of positive caster, depending on ride height.

Note: These plates suit coilover kits that use the factory top mount, such as Öhlins Road & Track and KW V3. They do not suit coilover kits with 60 mm ID springs. A wheel alignment is needed after fitting. Installation by a professional is recommended.

Features

• Two fixed camber settings: Road and Track
• Offset bearing adds up to 1 degree of positive caster (ride height dependent)
• More front grip and less understeer
• Sharper steering feel and more even front tyre wear
• Works with coilovers that use the factory top mount
• Billet 6082 T6 aluminium plates
• Designed and made in the UK by Suspension Secrets

Pairs Well With

• Suspension Secrets Adjustable Camber and Roll Centre Ball Joints - VW Golf GTI / R (Mk7 / Mk8) / Audi S3 / RS3 (8V / 8Y) / Cupra Leon (KL)
• Suspension Secrets Front Offset Caster Bushes - VW Golf GTI / R (Mk7 / Mk8) / Audi S3 / RS3 (8V / 8Y) / Cupra Leon (KL)
• Suspension Secrets Adjustable Bump Steer Tie Rod Ends - VW Golf GTI / R (Mk7 / Mk8) / Audi S3 / RS3 (8V / 8Y) / Cupra Leon (KL)
• Öhlins Road & Track Coilovers - Golf R (Mk7 / Mk8) / Audi S3 / RS3 (8V / 8Y)

Shop more: Suspension Secrets VW and Audi (MQB) · All Suspension Secrets

Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
