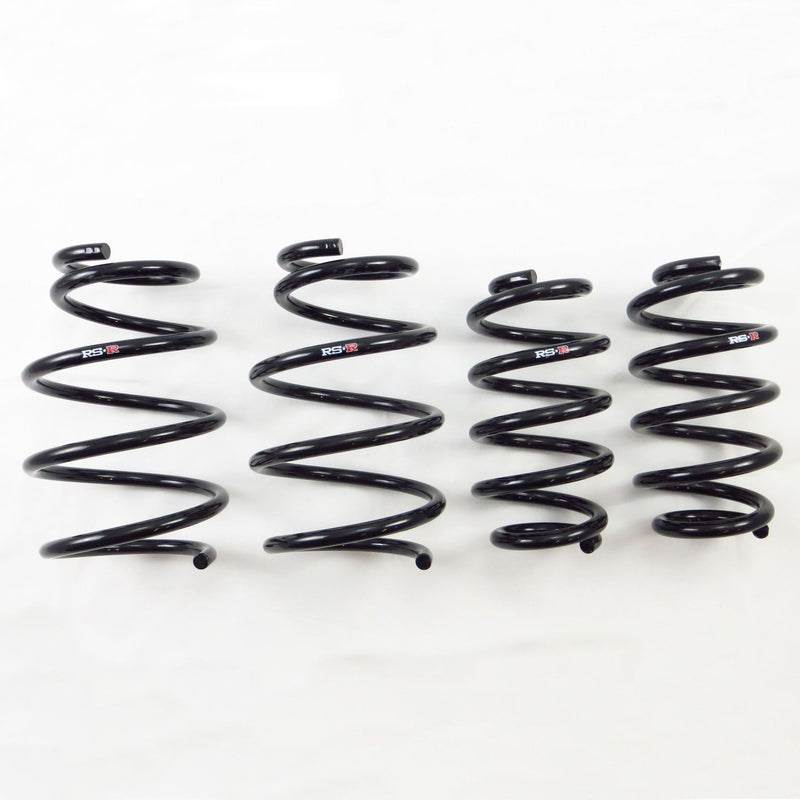

RS-R Down Lowering Springs - Lexus NX200t / NX300 / NX300h (AZ10)
RS-R Down springs give the Lexus NX200t / NX300 / NX300h (AZ10) a mild drop and a reduced wheel-arch gap. They are tuned to work with the factory dampers and suspension geometry, and lower the car by approximately 25-35mm at the front and 30-35mm at the rear.
Note: drop figures are approximate and vary with vehicle condition and options. A wheel alignment is required after fitting. These springs suit both FWD and AWD models. Drop differs between the NX200t / NX300 and the NX300h; see the drop figures in the specifications. Installation by a professional is recommended.
What's Included
- Set of 4 lowering springs (2 front / 2 rear)
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine / Trim |
|---|---|---|---|
| Lexus | NX200t | AZ10 | 2.0 Turbo FWD / AWD |
| Lexus | NX300 | AZ10 | 2.0 Turbo FWD / AWD |
| Lexus | NX300h | AZ10 | Hybrid FWD / AWD |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | RS-R |
| Series | Down |
| Front drop | 30-35mm (NX200t / NX300); 25-30mm (NX300h) |
| Rear drop | 30-35mm (NX200t / NX300); 30-35mm (NX300h) |
| Front spring rate (kg/mm) | 3.51 |
| Rear spring rate (kg/mm) | 7.27 |
| Construction | Heat-treated high-tensile spring steel |
| Warranty | 3 year warranty |
| Part number | T532D |
No instructions available for this product.
