Radium Engineering Fuel Pump Hanger Honda Integra (DA/DB) / Civic / CR-X (EF)

Radium Engineering Fuel Pump Hanger - Honda Integra (DA/DB) / Civic / CR-X (EF)

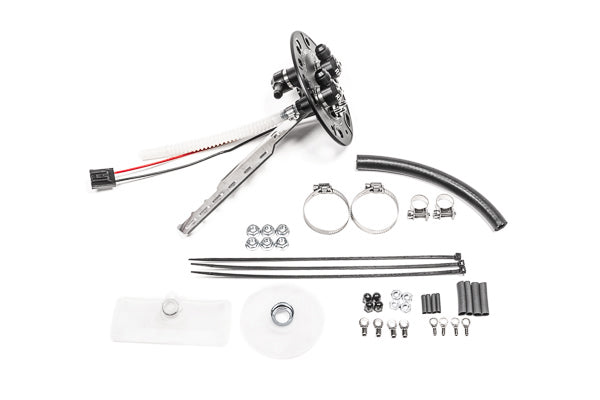

This Radium Engineering fuel pump hanger replaces the factory pump assembly in the 1990-1993 Integra and 1988-1991 Civic / CR-X, and installs without cutting or modifying the fuel tank or body. The pump is located in the factory collector bowl to protect against fuel starvation (SKU 20-1790 / 20-1792).

Use the variant selector to choose the hanger to suit your pump: 20-1790 suits the Walbro GSS342 or AEM 50-1200, while 20-1792 suits the Walbro F90000267/274/285 or brushless pumps. All fittings sit low enough to clear the boot floor.

Note: The hanger is configured for one aftermarket pump. A second brushed pump can be added with the matching Dual Pump Add-On (20-1796 for 20-1790, 20-1797 for 20-1792), sold separately. The add-on cannot be used with a brushless pump because of the extra controller wiring. Installation by a professional is recommended.

Features

• Replaces the factory fuel pump assembly – no cutting of the tank or body required
• Pump sits in the factory collector bowl for fuel starvation protection
• Pump outlet tapped 8AN ORB (3/4"-16) with pre-installed 6AN male fitting
• Return inlet tapped 6AN ORB (9/16"-18) with 6AN male fitting
• Anti-rotation stainless steel electrical studs, hermetically sealed
• Non-conductive anodised aluminium acorn nuts and ETFE-insulated in-tank wiring

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
