Radium Engineering Fuel Pump Hanger
Not sure which option fits your application? Contact Us — we're happy to help.

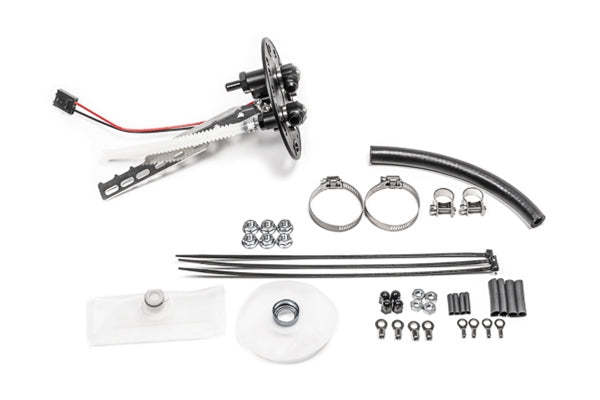

Radium Engineering Fuel Pump Hanger - Honda Del Sol (EG)
This Radium Engineering fuel pump hanger is a direct replacement for the factory pump assembly in the Honda Del Sol (EG) (SKU 20-3790 / 20-3792). It installs without any cutting or modification to the tank or body, every fitting is machined low enough to clear the access cover, and the pump sits inside the factory collector bowl to guard against fuel starvation.
Use the variant selector to choose the version that suits your fuel pump: Walbro GSS342 / AEM 50-1200, or Walbro F90000267/274/285 and brushless pumps. A dual pump add-on and a fuel hanger connection kit are available separately.
Note: If a brushless pump is installed the system is limited to a single pump, as the extra brushless controller wiring prevents use of the dual pump add-on. Installation by a professional is recommended.
Features
- 8AN ORB (3/4"-16) female pump outlet with pre-installed 6AN male fitting
- 6AN ORB (9/16"-18) female return inlet with supplied 6AN male fitting
- Anti-rotation stainless steel electrical studs, hermetically sealed and serviceable
- Non-conductive anodised aluminium acorn nuts to prevent accidental shorts
- Chemically resistant ETFE-insulated in-tank wiring
- Pump located in the factory collector bowl for starvation protection
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Honda | Del Sol | EG | - | D16/B16 |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Radium Engineering |
| Pump outlet | 8AN ORB (3/4"-16) female, pre-installed 6AN male fitting |
| Return inlet | 6AN ORB (9/16"-18) female, 6AN male fitting supplied |
| Electrical | Anti-rotation stainless steel studs, hermetically sealed |
| In-tank wiring | ETFE insulated |
| Installation | No cutting of tank or sheet metal required |
| Part number(s) | 20-3790, 20-3792 |
| Walbro GSS342 / AEM 50-1200 – Part number | 20-3790 |
| Walbro F90000267/274/285 / Brushless – Part number | 20-3792 |
No instructions available for this product.
