Radium Engineering Fuel Hanger Surge Tank
Not sure which option fits your application? Contact Us - we're happy to help.
Radium Engineering Fuel Hanger Surge Tank - Chevrolet Corvette (C8)
The Radium Engineering fuel hanger surge tank for the Chevrolet Corvette (C8) lets you run one, two or three aftermarket fuel pumps in the stock right-hand fuel tank, and is compatible with brushless pumps. It supports three layouts: direct injection only, direct plus port injection, or direct plus port injection with the hanger working as a true surge tank. A siphon jet pump, three one-way fill valves and regulator return fuel keep the one-piece collector full during aggressive driving (SKUs 20-1110, 20-1111, 20-1112).
Use the variant selector to choose the fuel pump the hanger is built to accept: Walbro GSS342 / AEM 50-1200, Ti Automotive E5LM, or Walbro F90000267/274/285 / DW440.
Note: The engine is commonly removed to access the C8 fuel tanks. The jet pump consumes 15-45 LPH depending on fuel pressure, so allow for this when sizing pumps. Fuel pump wiring kits are sold separately – one per pump. Some brushless pumps used with 20-1112 need Radium's 12mm strainer base, and the merged-pump configuration requires the OEM FPR to be deleted. Installation by a professional is recommended.
Features
- Runs 1, 2 or 3 aftermarket fuel pumps, including brushless pumps
- 10AN ORB feed port with low-profile 8AN male fitting
- 8AN ORB return port with low-profile 6AN male fitting
- 3/8" SAE quick connect fitting supplied for surge tank use
- Reuses the large OEM EVAP connections
- Integrated siphon jet pump and three one-way fill valves (355 LPH each)
- One-piece anodised aluminium collector
- Sealed anti-rotation stainless electrical studs, non-conductive acorn nuts and ETFE-insulated wiring
Pairs Well With
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Fill valves
- 3 x one-way, 355 LPH each
- Part number(s)
- 20-1110, 20-1111, 20-1112
- Walbro GSS342 / AEM 50-1200 – Part number
- 20-1110
- Ti Automotive E5LM – Part number
- 20-1111
- Walbro F90000267/274/285 / DW440 – Part number
- 20-1112
Details
- Application
- Chevrolet Corvette C8 (2020+), stock RH fuel tank
- Pump capacity
- 1, 2 or 3 aftermarket pumps (brushless compatible)
- Feed port
- 10AN ORB with low-profile 8AN male fitting
- Return port
- 8AN ORB with low-profile 6AN male fitting
- Surge tank fitting
- 3/8" SAE quick connect (supplied)
- Jet pump consumption
- 15-45 LPH depending on fuel pressure
- Collector
- One-piece anodised aluminium
- In-tank wiring
- ETFE insulated

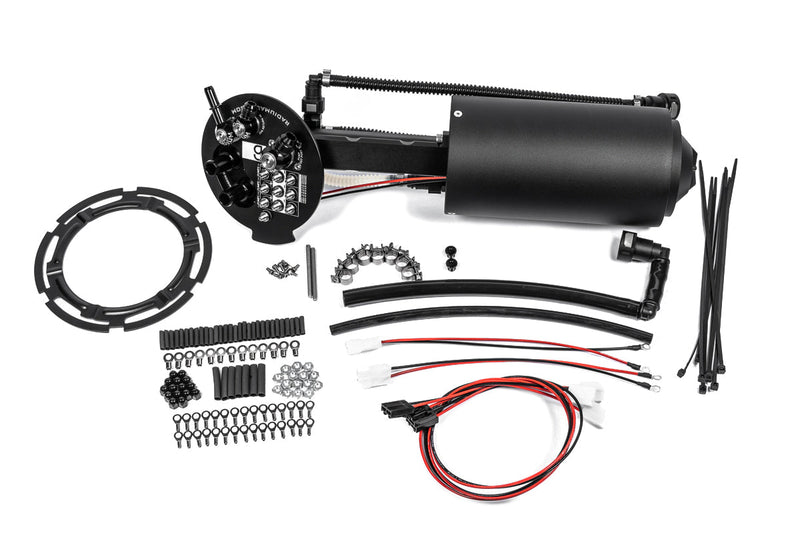

Contents
- Fuel hanger surge tank (per variant)
- Low-profile 8AN male feed fitting
- Low-profile 6AN male return fitting
- 3/8" SAE quick-connect fitting
- Non-conductive acorn nuts
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
