Radium Engineering Fluid Lock Dual Catch Can Kit Toyota Supra (A90 / A91)

Radium Engineering Fluid Lock Dual Catch Can Kit - Toyota Supra (A90 / A91)

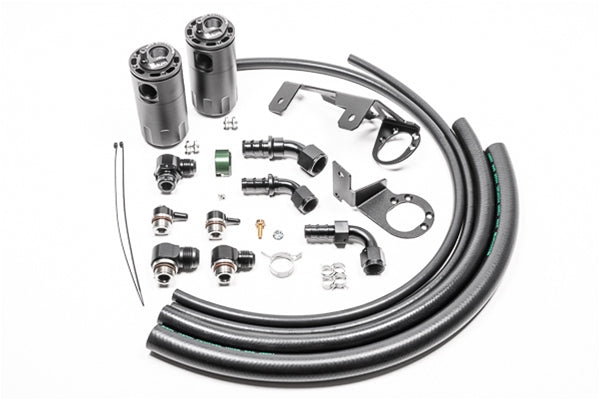

This Radium Engineering kit (SKU 20-0751-FL) combines the PCV and CCV Fluid Lock catch cans for the MK5 Toyota GR Supra in one package. Together they trap oil, fuel vapour and sludge from both the PCV and crankcase vent sides before it can reach the turbo inlet, intercooler and intake, helping keep the intake tract clean and performance consistent.

Video

MKV Supra Radium catch can install pt2

The PCV can runs between the ventilation valve and the intake pipe and mounts to threaded bosses on the front radiator support, clear of aftermarket turbo and intake upgrades. The CCV can mounts to two holes on the front radiator support and was shaped to clear strut braces. Radium's Fluid Lock design stops the reservoir overfilling and holds the collected fluid until the can is emptied.

Note: This is a closed-loop system that does not vent to atmosphere. Because the cans are pressure sealed, no additional inline check valve is needed. Check the level with the dipstick after 3–4 weeks of driving to work out a suitable emptying interval. Installation by a professional is recommended.

Features

• Dual PCV and CCV catch can configuration (20-0749-FL and 20-0750-FL kits)
• Fluid Lock mechanism prevents overfilling and traps collected fluid
• 10AN ORB ports with a 4AN ORB drain port on each can
• 2-step internal baffling for oil separation
• O-ring sealed dipstick for quick level checks
• Supra-specific laser-cut mounting brackets and pre-cut PCV hose
• Mounts to factory holes – no cutting, drilling or permanent modification
• Fits under the OEM engine cover
