Radium Engineering Dual Catch Can Kit Chevrolet Corvette Z06 (C7) Fluid Lock

Radium Engineering Dual Catch Can Kit - Chevrolet Corvette Z06 (C7) - Fluid Lock

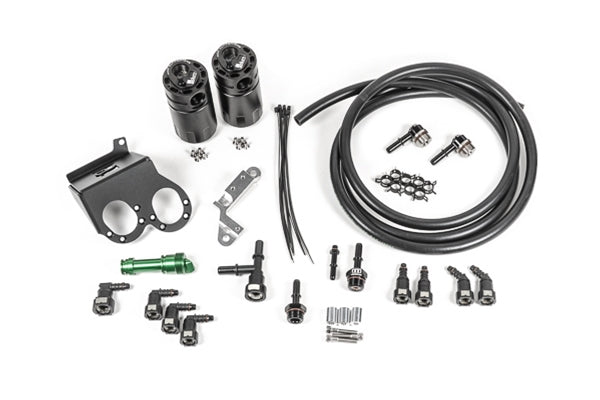

This Radium Engineering kit fits two Fluid Lock catch cans to the 2015-2019 Chevrolet Corvette Z06 (C7), one on the PCV side and one on the CCV side of the crankcase (SKU 20-1186-FL). The cans remove oil and water condensation from crankcase gases before they reach the intake, keeping the intake, intercooler system, throttle body and manifold free of oil build-up.

The anodised aluminium bracket sits near the front left-hand side of the engine, on a polished billet plate that bolts to three OEM grounding points, with spacers to clear the supercharger pulley. Because the factory PCV valve is built into the crankcase valley and cannot be reused, it is replaced with a billet bypass that feeds the PCV catch can, which then returns clean air to the intake through a Radium PCV valve. Radium's patented Fluid Lock design stops the reservoir overfilling and traps collected fluid until it is emptied.

Note: Check the catch can levels with the integrated dipsticks from around 3-4 weeks of driving to establish an emptying interval; PCV cans typically collect more than CCV cans. Excessive oil collection can point to an engine issue such as blow-by or an overfilled sump. Installation by a professional is recommended. Designed around the US-market vehicle; please confirm fitment on Australian-delivered vehicles with our team before ordering.

Features

• Two Fluid Lock catch cans (PCV and CCV)
• Anodised aluminium dual can bracket on a polished billet ground plate
• Spacers to clear the supercharger pulley
• Billet PCV bypass replaces the integrated OEM PCV valve
• Radium PCV valve on the PCV can outlet
• Integrated dipsticks for checking fluid level
• Complete installation kit

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
