Nitto Oil Pump External Feed Fitting - Nissan RB25DET / RB26DETT / RB30 - Skyline / Skyline GT-R (R31–R34) / Stagea (WC34) / Commodore (VL)

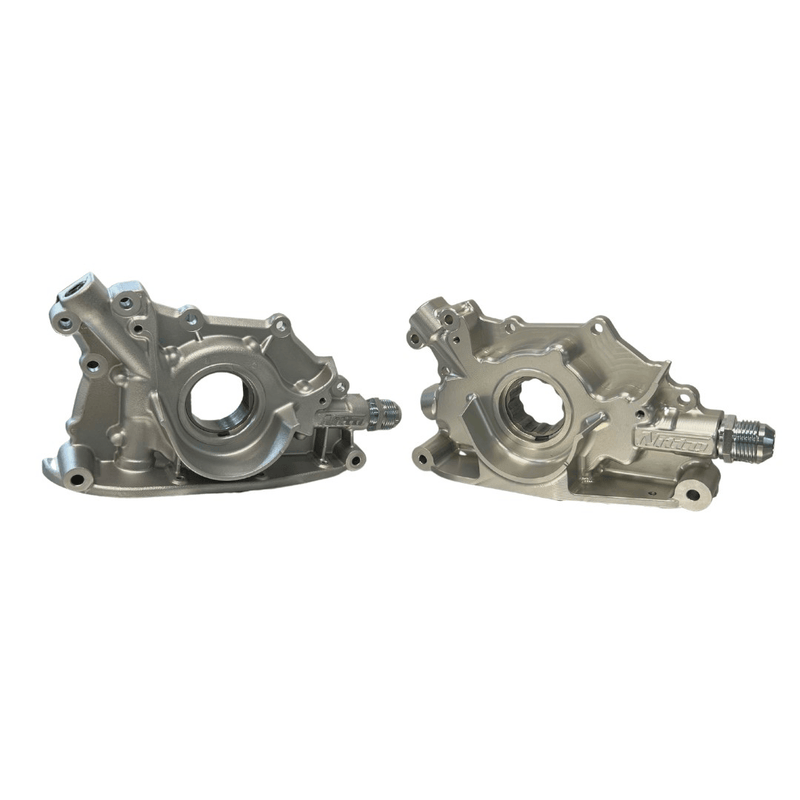

A shorty fitting that lets you add an external oil feed to a Nissan RB oil pump for better oil delivery into the pump. You can run it alongside the internal feed from the block, or on its own with the internal feed blocked off.
Choose the fitting to suit your pump. The cast pump version converts the 1/2" NPT port to -12AN; the billet pump version converts the -10AN port to -12AN. Both have a 15.6 mm internal diameter.
Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.
Features
- Machined from 4140 hex bar
- -12AN outlet with a 15.6 mm internal diameter
- Screws straight in where the inlet-side plug was
- Run external feed only, or internal and external together
- Fits within the factory air-conditioning layout with minimal modification
Warranty
Nitto parts are made for racing and off-road use. Check every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Nitto will repair or replace a defective part at its option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
Pairs Well With
- Nitto Billet Externally Adjustable Oil Pump - Nissan RB25DET / RB26DETT / RB30 - Skyline / Skyline GT-R (R31–R34) / Stagea (WC34) / Commodore (VL)
- Nitto Oil Pump - Nissan RB25DET / RB26DETT / RB30 - Skyline / Skyline GT-R (R31–R34) / Stagea (WC34) / Commodore (VL)
- Nitto Oil Gallery Restrictor - Nissan RB25DET / RB26DETT / RB30 - Skyline / Skyline GT-R (R31–R34) / Stagea (WC34) / Commodore (VL)
- Nitto Crank Collar - Nissan RB25DET / RB26DETT / RB30 - Skyline / Skyline GT-R (R31–R34) / Stagea (WC34) / Commodore (VL)
Shop more: Nitto
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Nissan | Skyline GTS-T | R33 (ECR33) | 1993–1998 | RB25DET (Japanese import) |
| Nissan | Stagea | WC34 | 1996–1998 | RB25DET (Japanese import, pre-NEO models) |
| Nissan | Skyline GT-T | R34 (ER34) | 1998–2001 | RB25DET NEO (Japanese import) |
| Nissan | Stagea | WC34 | 1998–2001 | RB25DET NEO (Japanese import, series 2) |
| Nissan | Skyline GT-R | R32 (BNR32) | 1989–1994 | RB26DETT (Japanese import) |
| Nissan | Skyline GT-R | R33 (BCNR33) | 1995–1998 | RB26DETT (Japanese import) |
| Nissan | Skyline GT-R | R34 (BNR34) | 1999–2002 | RB26DETT (Japanese import) |
| Holden | Commodore | VL | 1986–1988 | RB30E / RB30ET |
| Nissan | Skyline | R31 | 1986–1990 | RB30E (Australian-built) |
| Nissan | RB30 hybrid | — | — | RB30 block with RB25 / RB26 DOHC head (see Notes) |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Nitto |
| Product | Oil pump external feed fitting |
| Engine | Nissan RB series |
| Material | 4140 steel |
| Thread / outlet | Cast pump: 1/2" NPT to -12AN; Billet pump: -10AN to -12AN |
| Internal diameter | 15.6 mm |
| Warranty | Nitto limited warranty (racing use) |
| Instructions | Nitto installation notes (link below) |
| Part number(s) | NIT-OIL-1/2 NPT-C, NIT-OIL-12AN-B |
Contents
1 x Nitto RB oil pump external feed fitting
