Nitto H-Beam Connecting Rods Subaru FA24 WRX (VB) / BRZ (ZD8) / Toyota GR86 (ZN8)

Nitto H-Beam Connecting Rods - Subaru FA24 - WRX (VB) / BRZ (ZD8) / Toyota GR86 (ZN8)

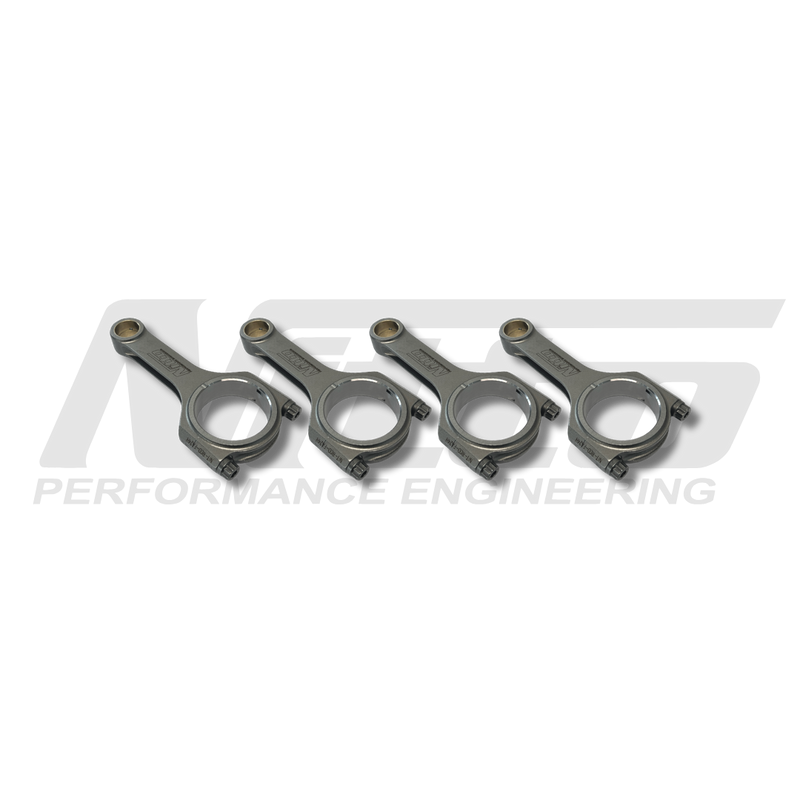

A set of four H-beam connecting rods for the Subaru FA24, fitted to the VB WRX (FA24DIT), the ZD8 BRZ and the Toyota GR86 (FA24D). They are an affordable upgrade for mid-level turbo or supercharged builds on the street and at the track.

One version is listed: 129 mm centre to centre. Note that these rods are machined to take an EJ-series big-end bearing, not the FA24 bearing, so order EJ big-end bearings with them.

Every Nitto steel rod starts as double-melted 4340 billet, a cleaner material than the single-melt steel common in the aftermarket, and is forged as one piece for a consistent grain structure. The H-beam is Nitto's value option: a simpler design to machine that keeps the price down for builds that need more strength than stock but not the heavy-duty margin of an I-beam.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• 129 mm length, sized for an EJ big-end bearing
• Double-melted 4340 billet steel, one-piece forging, X-ray and sonic grade tested
• Quenched, heat treated and shot peened (38 HRC)
• Doweled caps for accurate cap alignment
• ARP 2000 rod bolts, 3/8", with an optional ARP Custom Age 625+ bolt upgrade
• Silicon bronze pin-end bushes
• Balanced to within ±1 gram per set, bores held to ±0.0001"

Kit Contents

• 4 x Nitto 4340 H-beam connecting rods
• ARP 2000 3/8" rod bolts

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its option, and any modification to a part voids the warranty. Full terms: Nitto limited warranty (PDF).
