Nitto H-Beam Connecting Rods
Not sure which option fits your application? Contact Us - we're happy to help.

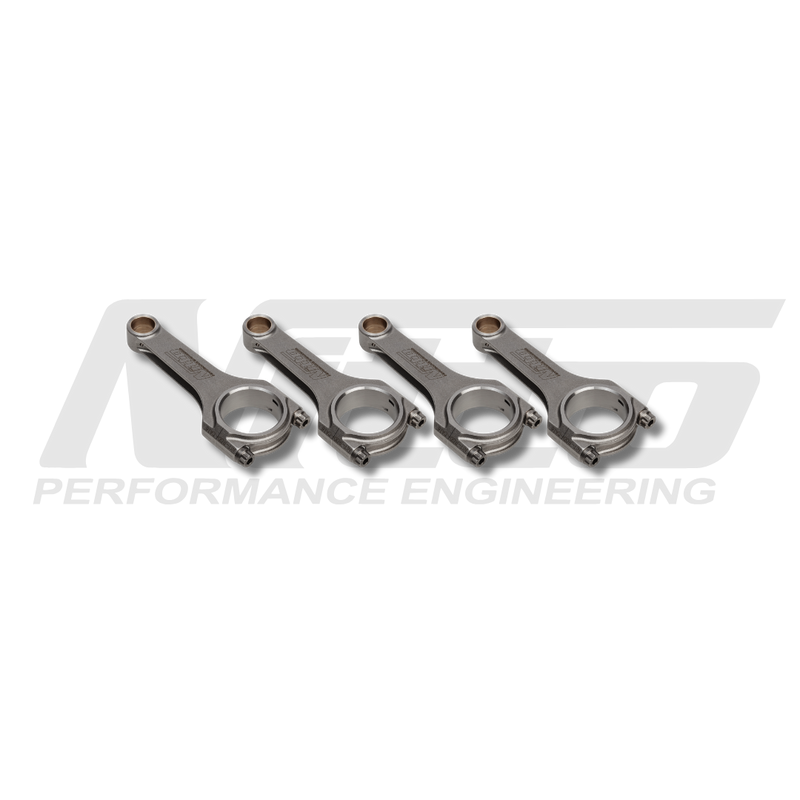

Nitto H-Beam Connecting Rods - Nissan CA18DET - Silvia / 180SX (S13)
Nitto's CA18 H-beam rods are a forged 4340 upgrade for the CA18DET in the early S13 Silvia and 180SX. They suit street and weekend track builds that need a stronger link than the factory rods without stepping up to an I-beam.
Nitto H-beams are made from double-melted 4340 forged billet, which removes more impurities than single-melted steel, and are machined as a one-piece forging. They use ARP 2000 rod bolts and silicon bronze pin bushes, and are aimed at the mid-level enthusiast or racer.
Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.
Features
- Double-melted 4340 billet steel, one-piece forging
- X-ray and sonic grade tested, quenched, heat treated and shot peened (38 HRC)
- Doweled cap for accurate cap alignment
- Silicon bronze pin end bushes
- ARP 2000 rod bolts, with ARP Custom Age 625+ available as an upgrade
- Balanced to within ±1 g per set; big and small end bores sized to ±0.0001" on Sunnen honing equipment
Warranty
Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
Pairs Well With
Shop more: Nitto
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Nitto
- Part number(s)
- NIT-ROD-CA18H
Details
- Product
- H-beam connecting rods
- Engine
- Nissan CA18DET
- Material
- 4340 billet steel
- Beam type
- H-beam
- Length
- 133 mm
- Rod bolts
- 3/8" ARP 2000 (Custom Age 625+ optional)
- Pin bush
- Silicon bronze
- Warranty
- Nitto limited warranty (racing use)
- Instructions
- Nitto installation notes (link below)
Contents
1 x set of 4 Nitto H-beam connecting rods with ARP 2000 rod bolts
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
