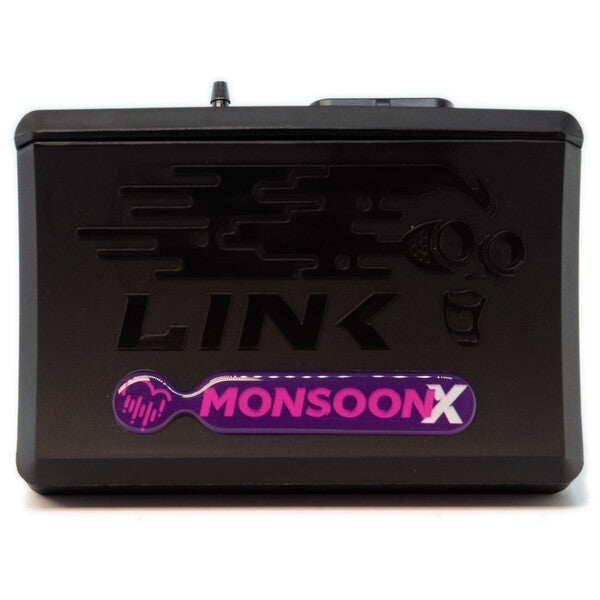

Link G4X MonsoonX ECU Universal

Link G4X MonsoonX ECU - Universal

The Link G4X MonsoonX is a standalone engine management ECU built for tuners who want more than the basics without stepping up to Link's top tier units. As part of the G4X range, it brings faster data logging, more precise control loops and improved resolution over the outgoing G4+ platform, all packed into a compact, cost effective shell.

This listing covers the Link G4X MonsoonX, a universal ECU suited to naturally aspirated or turbocharged engines running up to two rotors or four cylinders with sequential injection and direct spark. It includes all the tuning capability of the AtomX plus the option to run features such as Launch Control, Anti-Lag, VVT Control or Closed Loop Boost Control, along with a built in 4Bar MAP sensor to simplify installation.

Note: the MonsoonX cannot run all of the above extra features simultaneously — the number available depends on how many inputs and outputs are free once your core tuning setup is configured. A loom is required for installation and is sold separately.

Key Features

• 512 megabytes of onboard data logging at 32bit
• Up to 250 logging channels, up to 1kHz per channel
• Maximum logging rate of 100 kSamples/sec
• Single precision floating point fuel tables
• Improved ignition timing resolution over G4+
• Faster communications versus previous generation
• Controls up to 2 rotors or 4 cylinders, sequential injection and direct spark
• Optional Launch Control, Anti-Lag, VVT Control and Closed Loop Boost Control
• Built in 4Bar MAP sensor
• Requires a separate loom (not included)

Vehicle compatibility, wiring requirements and fitment notes are provided in the tabs above. Please confirm your engine configuration and loom requirements before ordering.

Not sure if this ECU suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
