Koyorad Universal Pocket Radiator Honda 610x241x53mm (24x9.5in)

Koyorad Universal Pocket Radiator - Honda - 610x241x53mm (24x9.5in)

Koyorad has been building race proven aluminium radiators for decades, and this Universal Pocket Radiator (SKU RH249525) is a compact, high capacity unit designed for tucked and show engine bays. It's a popular choice for Honda builds where the factory radiator support has been removed or the bay has been wire tucked, giving you serious cooling in a small footprint.

This listing covers the universal fitment pocket radiator. Its versatile mounting tabs and reversible design let it be flipped to suit your inlet and outlet routing, and it accepts 8 inch electric fans.

Note: this is a tucked radiator with no filler neck. It is designed for use with an upper coolant housing that has its own filler neck. It is not a direct bolt-on, and some modification may be required to suit your vehicle. Electric fans are not included.

Key Features

• High density 53mm thick HyperCore, two row core
• Dual pass N-Flo partition for improved heat transfer
• Versatile mounting tabs, can be reversed or flipped
• Removable fan shrouds, compatible with 8 inch electric fans
• Two air purge ports and two 1/8 PT temperature sensor ports
• High polished finish, triple pressure tested

Specifications

• SKU: RH249525

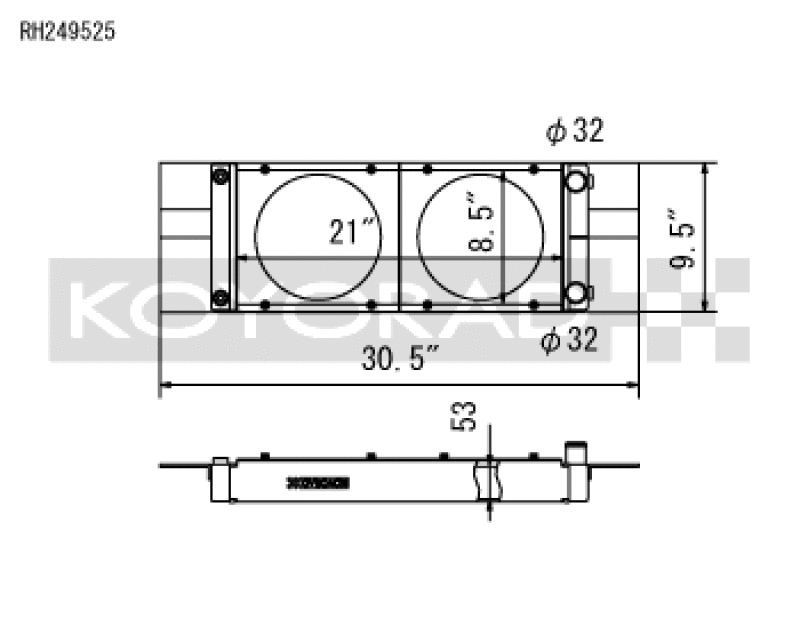

• Core size: 610mm x 241mm (24 x 9.5 in)
• Core thickness: 53mm
• Overall length including mounting tabs: 775mm (30.5 in)
• Inlet / outlet: 32mm (1.25 in)
• Construction: full aluminium
• Filler neck: none

Please confirm your engine bay layout, coolant housing and hose routing before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
