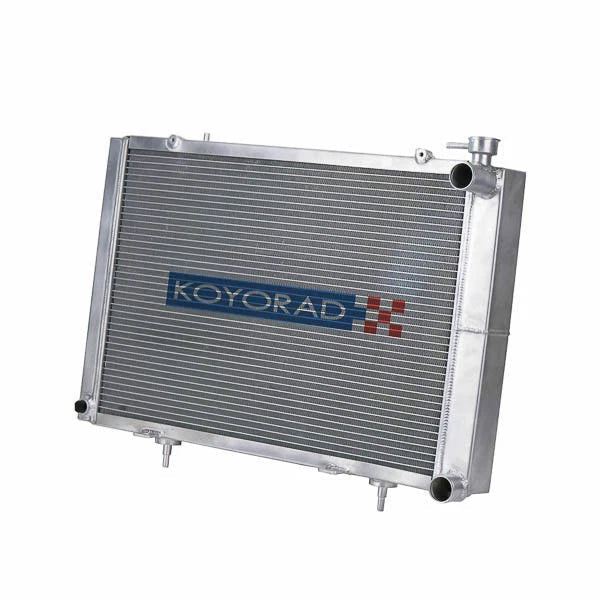

Koyo Performance Radiator - Toyota Corolla Levin/Sprinter Trueno 1983-1987 - MT
Koyorad builds all aluminium radiators using Nocolok furnace brazing and hand Heliarc welding, giving you a stronger, lighter cooling core than the factory copper unit. For the Toyota Corolla Levin and Sprinter Trueno, keeping the high revving 4A-GEU twin-cam cool is essential whether you're running stock or pushing a built engine on track.
This listing covers the Toyota Corolla Levin (AE85) and Sprinter Trueno (AE86), 1983-1987, manual transmission only. SKU HH010681 (also listed as KH010681) is a direct bolt-in replacement using the factory mounting points, fan shroud brackets and stock hose connections.
Specifications
- Core thickness: 48mm
- Core dimensions (H x W): 325 x 557/585mm
- Tube pitch: 55/55 x 587mm
- Inlet/outlet diameter: 32mm (top and bottom)
- Construction: all aluminium, Nocolok brazed, Heliarc welded
- Billet filler neck
- Retains OEM fan shroud mounts, compatible with stock hoses
- Manual transmission fitment only, sold individually
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your AE85 or AE86's transmission type before ordering.
Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Toyota | Corolla Levin | AE85 | 3A-U |
| Toyota | Sprinter Trueno | AE86 | 4A-GEU |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number | HH010681 / KH010681 |
| Core Thickness | 48mm |
| Core Dimensions (H × W) | 325 × 557/585mm |
| Tube Pitch | 55/55 × 587mm |
| Inlet / Outlet Diameter | Ø32mm (top and bottom) |
| Construction | All aluminium, Nocolok brazed, Heliarc welded |
| Filler Neck | Precision machined billet |
| Transmission | Manual (MT) |
| Fan Shroud | Retains OEM mounts |
| Hoses | Compatible with stock radiator hoses |
| Fitment | Direct bolt-in, no modifications required |
| Cross Reference | Koyorad HH010681 / KH010681 |
