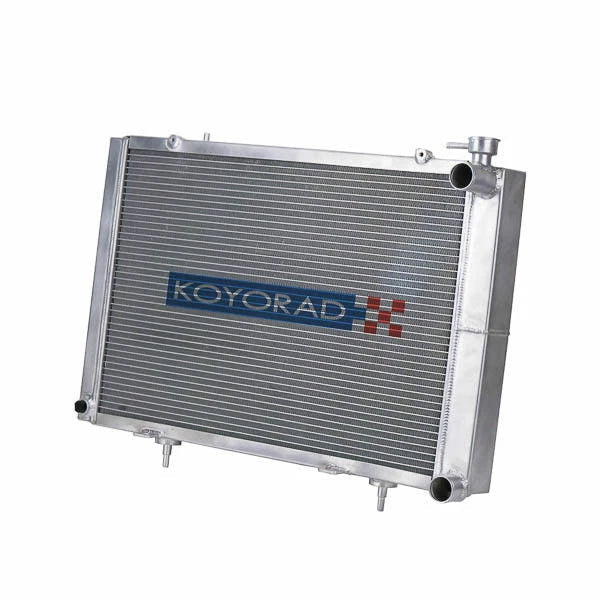

KOYORAD N-FLO Racing Radiator - Nissan 200SX / Silvia (S14 / S15)
This KOYORAD N-FLO racing radiator replaces the factory radiator in the S14 and S15 200SX and Silvia. It's all-aluminium, with a 48mm high-density two-row core from KoyoRad's HH series and N-FLO triple-pass partitions that route the coolant through the core three times. The core is Nocolok furnace-brazed and the tanks are hand Heliarc (TIG) welded.
It suits the manual Nissan 200SX and Silvia (S14 / S15) with the SR20DET 2.0-litre turbo. KoyoRad Japan also lists it for non-turbo SR20DE cars.
Note: Manual gearbox only. Installation by a professional is recommended.
Features
- 48mm high-density two-row core (KoyoRad HH series)
- N-FLO triple pass: welded partitions send coolant through the core three times
- Nocolok furnace brazing bonds the tubes, fins, headers and brackets into one structure
- Hand Heliarc (TIG) welded aluminium tanks
- Built to the factory mounting points
- Billet filler neck takes the KOYORAD SK-C13 deep-plunger cap
Pairs Well With
- KOYORAD Radiator Cap - Universal - 1.3 Bar
- GFB Hybrid Dual Port Blow Off Valve - Nissan 200SX (S14/S15)
- HARDRACE Engine and Transmission Mounts - Nissan Silvia / 180SX / 200SX (S13/S14/S15) - Race Version
Need help choosing a radiator for your S14 or S15? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- KOYORAD
- Part number(s)
- HH020369N
Details
- Product
- N-FLO racing radiator
- Core thickness
- 48mm (HH series high-density core)
- Rows
- 2
- Flow
- N-FLO triple pass
- Construction
- All-aluminium; Nocolok furnace-brazed core, hand Heliarc (TIG) welded tanks
- Radiator cap
- KOYORAD SK-C13 (sold separately)
- Transmission
- Manual only
- KoyoRad Japan equivalent
- KH020369R (TYPE-F)
Contents
- 1 x KOYORAD aluminium N-FLO racing radiator (HH020369N)
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
