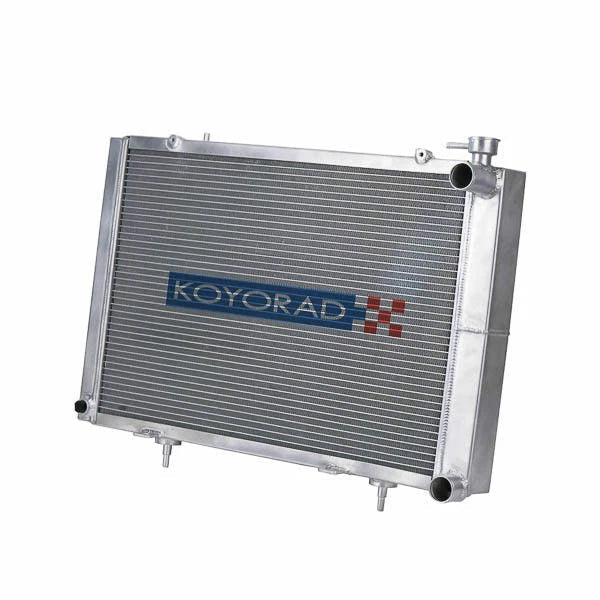

KOYORAD Racing Radiator - Mazda MX-5 (NB)
KOYORAD's VH-series racing radiator replaces the NB MX-5's factory radiator with an all-aluminium core 36mm thick and two rows deep in KOYORAD's high-density pattern. The core is Nocolok furnace brazed, the tanks are TIG (Heliarc) welded by hand, and the filler neck takes KOYORAD's SK-C13 cap.
It suits the NB Mazda MX-5 (NB8C) with the 1.8-litre BP engine and a manual gearbox, including the turbocharged SP and SE models.
Note: Manual transmission only. Use the KOYORAD SK-C13 radiator cap. Installation by a professional is recommended.
Features
- All-aluminium VH-series radiator
- 36mm high-density core with two rows
- Nocolok furnace-brazed core
- Aluminium tanks TIG (Heliarc) welded by hand
- Filler neck for the KOYORAD SK-C13 cap
- Locates on the factory mounting points
Pairs Well With
- KOYORAD Radiator Cap - Universal - 1.3 Bar
- Radium Engineering Fluid Lock Catch Can Kit (PCV) - Mazda MX-5 (NB)
Need help choosing cooling parts for your NB MX-5? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- KOYORAD
- Part number(s)
- VH060650
Details
- Product
- Racing radiator
- KoyoRad line
- VH series high-density core
- Core thickness
- 36mm
- Rows
- 2
- Construction
- All aluminium, Nocolok furnace brazed, hand TIG (Heliarc) welded tanks
- Radiator cap
- KOYORAD SK-C13
- Mounting
- Factory mounting points
- Transmission
- Manual only
- KoyoRad Japan equivalent
- KV060650R (TYPE-M)
Contents
- 1 x KOYORAD aluminium racing radiator
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
