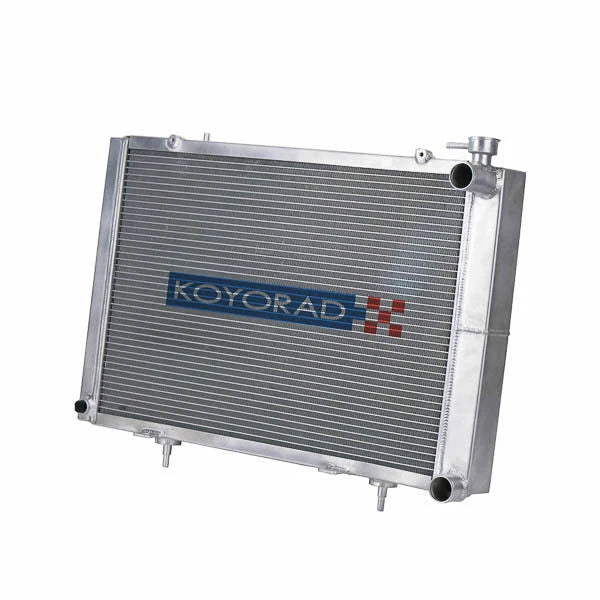

Koyo Performance Radiator - Toyota GR Yaris (GXPA16) MT
Koyorad builds all aluminium radiators to OEM fit with motorsport grade construction, and this unit brings that same approach to the Toyota GR Yaris. The G16E-GTS turbo triple runs hot under load, and Koyorad's Nocolok brazed, hand welded core is built to keep coolant temperatures in check when the car is pushed on track or in rally conditions.
This listing covers the Toyota GR Yaris (GXPA16), G16E-GTS 1.6L turbo AWD, fitted with a manual transmission. SKU KH013831. It is a direct bolt-in replacement using the factory mounting points, fan shroud brackets and stock hose connections, with no modifications required.
Note: this radiator is manual transmission fitment only.
Specifications
- Part Number: KH013831
- Construction: All aluminium, Nocolok furnace brazed, Heliarc welded
- Core thickness: 48mm
- Core dimensions (H x W): 625 x 394/404mm
- Tube pitch: 58/58 x 410mm
- Inlet/outlet diameter: 35mm (left and right)
- Billet machined filler neck
- Retains OEM fan shroud mounts and stock hose fitment
- Sold individually
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your GR Yaris transmission type before ordering.
Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Toyota | GR Yaris | GXPA16 | G16E-GTS |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number | KH013831 |
| Core Thickness | 48mm |
| Core Dimensions (H × W) | 625 × 394/404mm |
| Tube Pitch | 58/58 × 410mm |
| Inlet / Outlet Diameter | Ø35mm (left & right) |
| Construction | All aluminium, Nocolok brazed, Heliarc welded |
| Transmission | Manual (MT) |
| Fan Shroud | Retains OEM mounts |
| Hoses | Compatible with stock radiator hoses |
| Fitment | Direct bolt-in, no modifications required |
| OEM Cross Reference | Toyota 16400 18050 |
