KOYORAD Racing Radiator
Not sure which option fits your application? Contact Us - we're happy to help.

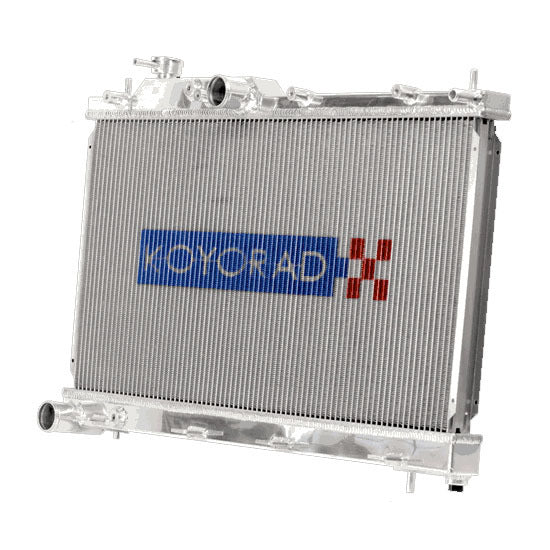

KOYORAD Racing Radiator - Subaru Forester XT (SG9)
KOYORAD's VH-series racing radiator replaces the Forester XT's factory radiator with an all-aluminium core 36mm thick and two rows deep. The core is Nocolok furnace brazed, the tanks are TIG (Heliarc) welded by hand, and it locates on the factory mounting points.
It suits the SG9 Subaru Forester XT with the EJ255 2.5-litre turbo and a manual gearbox, from the early MY04-05 cars to the later MY06-08 cars.
Note: Manual transmission only; not for automatic cars. Early MY04-05 cars need a minor change to the coolant return hose and an additional radiator cap. KOYORAD lists the KOYORAD SK-C13 radiator cap for this radiator. Installation by a professional is recommended.
Features
- All-aluminium VH-series radiator
- 36mm high-density core with two rows of tubes
- Nocolok furnace-brazed core
- Aluminium tanks TIG (Heliarc) welded by hand
- Filler neck for the KOYORAD SK-C13 cap
- Locates on the factory mounting points
Pairs Well With
- KOYORAD Radiator Cap - Universal - 1.3 Bar
- GrimmSpeed Radiator Hose Kit - Subaru Forester XT (SG9)
- GrimmSpeed Top Mount Intercooler Splitter - Subaru Forester XT (SG9)
Need help choosing a radiator for your Forester XT? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- KOYORAD
- Part number(s)
- VH13026
Details
- Product
- Racing radiator
- KoyoRad line
- VH series high-density core
- Core thickness
- 36mm
- Rows
- 2
- Construction
- All aluminium, Nocolok furnace brazed, hand TIG (Heliarc) welded tanks
- Radiator cap
- KOYORAD SK-C13
- Mounting
- Factory mounting points
- Transmission
- Manual only
Contents
- 1 x KOYORAD aluminium racing radiator
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
