KOYORAD N-FLO Racing Radiator
Not sure which option fits your application? Contact Us - we're happy to help.

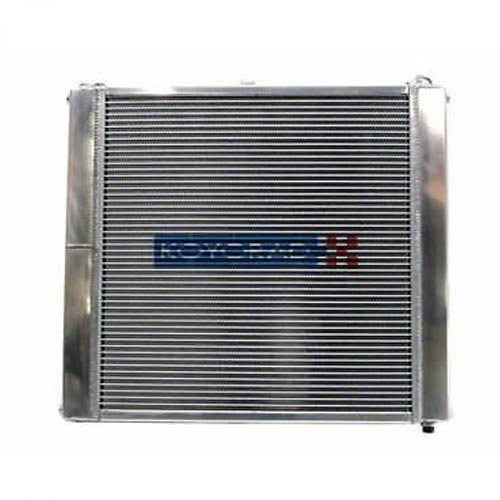

KOYORAD N-FLO Racing Radiator - Mazda RX-7 (FC) - Series 5
This KOYORAD racing radiator for the FC RX-7 uses KOYORAD's N-FLO dual-pass layout: welded partitions inside the tanks send the coolant through the core twice before it returns to the engine. It's built on a 48mm high-density HH-series core with two rows, all aluminium, Nocolok furnace brazed and TIG (Heliarc) welded by hand.
It suits the Series 5 FC RX-7, FC3S coupe and FC3C convertible, with the 13B rotary in naturally aspirated or turbo form and a manual gearbox.
Note: Series 5 FC and manual transmission only. The factory fan shroud needs minor trimming, and the factory intake snorkel won't fit with this radiator. Use the KOYORAD SK-C13 radiator cap. Installation by a professional is recommended.
Features
- N-FLO dual-pass flow: coolant crosses the core twice
- 48mm HH-series high-density core with two rows
- All-aluminium, Nocolok furnace-brazed core
- Tanks TIG (Heliarc) welded by hand
- Filler neck for the KOYORAD SK-C13 cap
- Locates on the factory mounting points
Pairs Well With
Need help choosing a radiator for your FC RX-7? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- KOYORAD
- Part number(s)
- HH060643N
Details
- Product
- N-FLO racing radiator
- KoyoRad line
- HH series high-density core
- Flow
- N-FLO dual pass
- Core thickness
- 48mm
- Rows
- 2
- Construction
- All aluminium, Nocolok furnace brazed, hand TIG (Heliarc) welded tanks
- Radiator cap
- KOYORAD SK-C13
- Transmission
- Manual only
Contents
- 1 x KOYORAD N-FLO aluminium racing radiator
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
