ARP Head Stud Kit VW / Audi 2.0 TFSI EA113 Golf GTI (Mk5) / Golf R (Mk6) / Audi S3 (8P)

ARP Head Stud Kit - VW / Audi 2.0 TFSI EA113 - Golf GTI (Mk5) / Golf R (Mk6) / Audi S3 (8P)

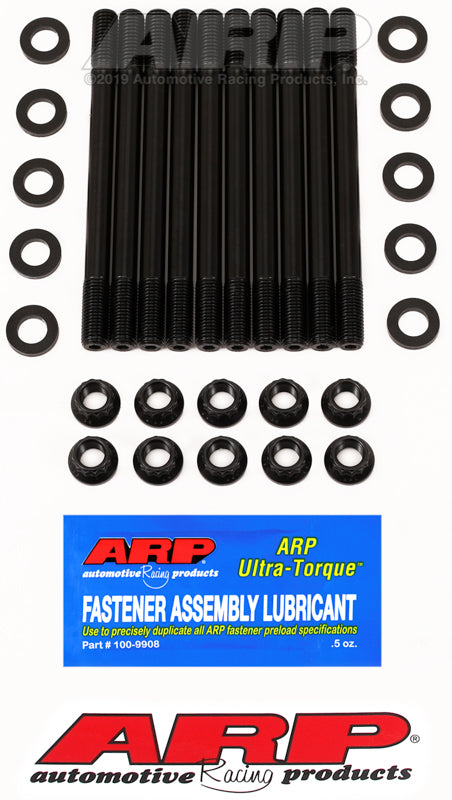

This ARP head stud kit suits the 2.0 FSI / TFSI (EA113) engine in the VW Golf GTI Mk5 / Golf R Mk6 / Audi S3 8P. It swaps the factory head bolts for studs, nuts and washers. The studs are wound into the block by hand and the head is clamped by torquing the nuts, which gives more even, repeatable clamping than factory stretch bolts and saves wear on the block threads each time the head comes off.

More clamping load helps the head gasket seal against high cylinder pressure, which is why head studs are one of the first parts fitted to a boosted or high-compression build.

Before you order: Suits the EA113 2.0 FSI/TFSI engine only, not the later EA888. Check your engine code before ordering.

See the Vehicle Fitment tab for the full list of vehicles.

Note: Installation by a professional is recommended.

Features

• Made in the USA by ARP
• Thread / diameter: M10 x 1.5
• ARP torque spec: 80 ft-lb (108 Nm) in three steps with ARP Ultra-Torque
• Installation instructions available from ARP (see Technical Specifications)

Pairs Well With

• ARP Main Stud Kit
• ARP 12-Point Cam Tower Bolt Kit
