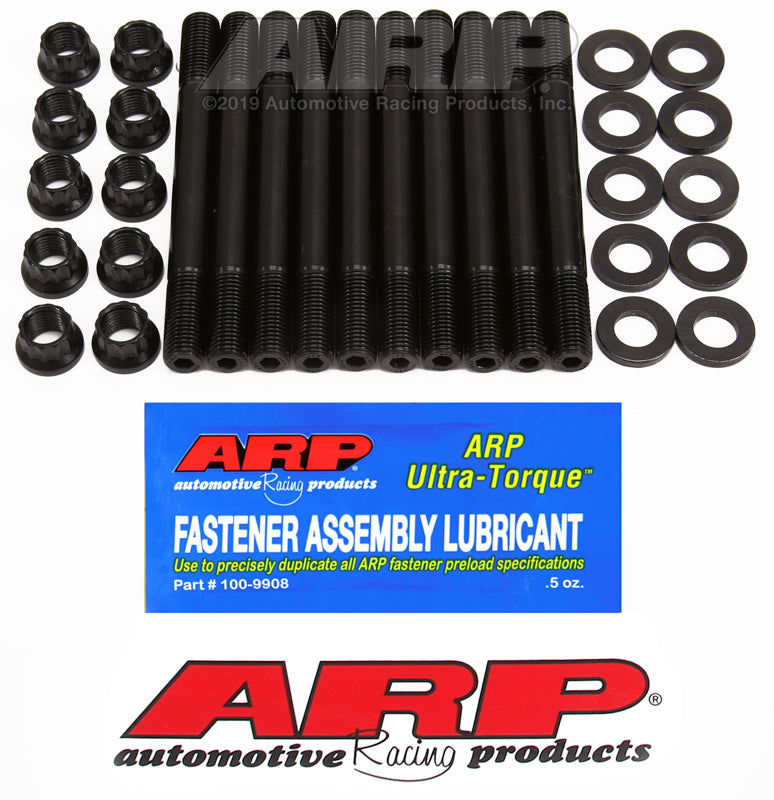

ARP Head Stud Kit - Mitsubishi 4G63 - Lancer Evolution IV–IX (CN9A / CP9A / CT9A) - M11
This ARP head stud kit suits the 4G63 (M11, 1994–on) engine in the Mitsubishi Lancer Evolution IV–IX. It swaps the factory head bolts for studs, nuts and washers. The studs are wound into the block by hand and the head is clamped by torquing the nuts, which gives more even, repeatable clamping than factory stretch bolts and saves wear on the block threads each time the head comes off.
More clamping load helps the head gasket seal against high cylinder pressure, which is why head studs are one of the first parts fitted to a boosted or high-compression build.
Material: 8740 chrome moly rated at 200,000 psi tensile strength.
Before you order: Suits the M11 head-bolt 4G63 ('94 on). Not for earlier M10 engines.
See the Vehicle Fitment tab for the full list of vehicles.
Note: Installation by a professional is recommended.
Features
- Made in the USA by ARP
- 8740 chrome moly, 200,000 psi
- Thread / diameter: 7/16in
- ARP torque spec: 80 ft-lb (108 Nm) in three steps with ARP Ultra-Torque
- Installation instructions available from ARP (see Technical Specifications)
Pairs Well With
- ARP Custom Age 625+ Head Stud Kit
- Siruda Grommet Metal Head Gasket - Mitsubishi Lancer Evolution I-III (CD9A / CE9A) - 4G63T
- Siruda Grommet Metal Head Gasket - Mitsubishi Lancer Evolution IV-IX (CN9A / CP9A / CT9A) - 4G63T
- ARTEC Direct Replacement Exhaust Manifold - Mitsubishi 4G63 - Lancer Evolution IV-IX (CN9A / CP9A / CT9A)
- ARTEC Low Mount V-Band Reverse Rotation Exhaust Manifold - Mitsubishi 4G63 - Lancer Evolution IV-IX (CN9A / CP9A / CT9A)
- ARTEC High Flow V-Band Reverse Rotation Exhaust Manifold - Mitsubishi 4G63 - Lancer Evolution IV-IX (CN9A / CP9A / CT9A)
- ARTEC 70mm V-Band Exhaust Manifold - Mitsubishi 4G63 - Lancer Evolution IV-IX (CN9A / CP9A / CT9A)
- ARTEC Dry Carbon Intake Manifold - Mitsubishi 4G63 - Lancer Evolution VII-IX (CT9A)
Shop more: ARP
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- ARP
- Part number(s)
- 207-4203
Details
- Product
- Head Stud Kit
- Engine
- 4G63 (M11, 1994–on)
- Material
- 8740 chrome moly
- Tensile strength
- 200,000 psi
- Thread / diameter
- 7/16in
- Torque (ARP Ultra-Torque)
- 80 ft-lb (108 Nm) in three steps
- Instructions
- ARP instruction sheet (link below)
Contents
1 x ARP head stud kit – studs, nuts and washers for one engine
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
