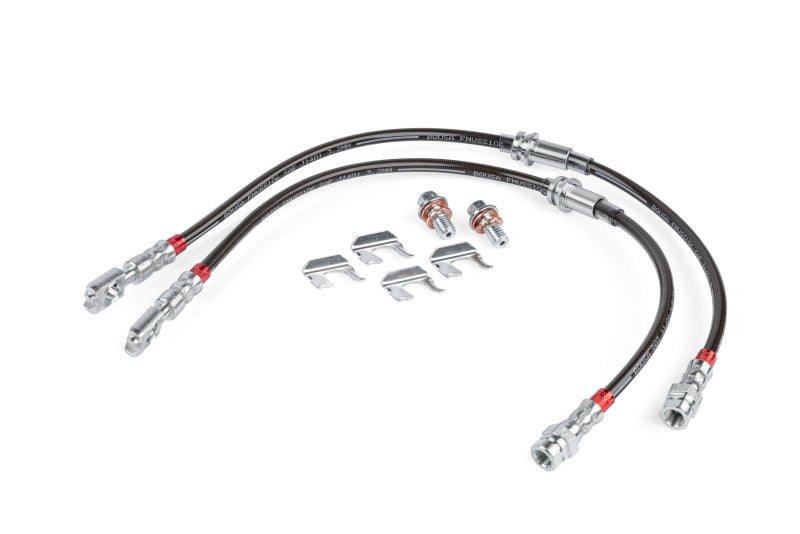

APR Braided Stainless Steel Brake Line Set - Audi A3/S3 (8V) / VW Golf R - Front
APR's braided brake lines are engineered to replace the factory rubber hoses that expand, soften and eventually fail with age. Built from 304 stainless steel braid over a smooth bore PTFE core, they deliver a firmer pedal and more consistent braking feel for your Audi A3, Audi S3 or Volkswagen Golf R.
This listing covers the front brake lines for the Audi A3 and Audi S3 (8V) plus the Volkswagen Golf R. Each line is application specific rather than a universal adapter kit, so fitment, length and hose ends are correct straight out of the box with no extra leak points to worry about.
Specifications
- 304 stainless steel braided construction with smooth bore PTFE (Teflon) core
- Smoked clear PVC outer jacket over the braid
- Red anodised inserts and Cr3+ steel connectors
- Each line pressure tested to approximately 20.7 MPa (3,000 psi) prior to sale
- Independently certified as SAE low expansion lines, averaging around 0.23 mL/m at 6.9 MPa and 0.36 mL/m at 20 MPa
- Compatible with DOT 3, DOT 4 and DOT 5.1 fluids
- Front line set, direct fit, no adapters required
Vehicle compatibility, OEM part numbers and fitment notes are provided in the tabs above. Please confirm your model, chassis and front/rear position before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | A3 | 8V | - |
| Audi | S3 | 8V | - |
| Volkswagen | Golf R | - |
Technical Specifications
| Spec | Value |
|---|---|
| Line Material | Braided 304 stainless steel |
| Inner Core | Smooth bore PTFE (Teflon) |
| Outer Jacket | PVC, smoked clear (braided lines visible through jacket) |
| Fitting Inserts | Red anodised |
| Connectors | Cr3+ steel |
| Fitment Type | Application specific, direct fit (no universal adapters) |
| Proof Test Pressure | 20.7 MPa (3,000 psi) |
| Fluid Expansion Rate | 0.23 mL/m (0.07 cc/ft) @ 6.9 MPa (1,000 psi) |
| Fluid Expansion Rate (High Pressure) | 0.36 mL/m (0.11 cc/ft) @ 20.0 MPa (2,900 psi) |
| Line Classification | SAE "low-expansion" certified (SAE J1401 test method) |
| Brake Fluid Compatibility | DOT 3, DOT 4, DOT 5 (silicone based), DOT 5.1 |
| Position | Front |
