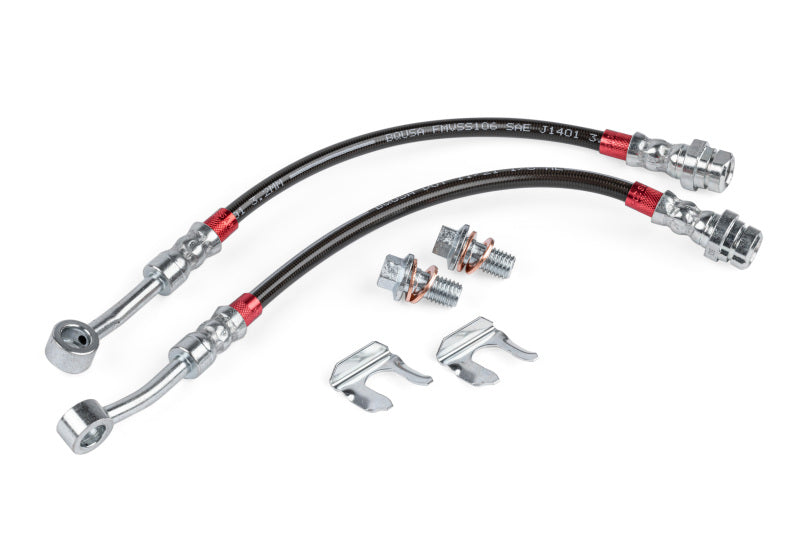

APR Braided Brake Line Set - Audi RS3 (8V) / Volkswagen Golf R (5G/CD) - Rear
APR builds its brake line upgrades to replace the factory rubber hoses that expand and degrade over time, giving a firmer, more consistent pedal. This rear set is designed for the Audi RS3 and Volkswagen Golf R, using braided stainless steel construction with a PTFE core to virtually eliminate hose expansion under hard braking.
This listing covers the Audi RS3 (8V) and Volkswagen Golf R (5G/CD), application specific for a direct fit with no adapters or extra leak points. SKU: BRK00051.
Specifications
- 304 stainless steel braided lines with smooth bore PTFE core
- Smoked clear PVC outer jacket with red anodised inserts
- Cr3+ steel connectors
- Tested to 207 bar (3,000 psi) prior to sale
- Independently rated as SAE low expansion lines: approximately 0.23 mL/m at 69 bar (1,000 psi) and 0.36 mL/m at 200 bar (2,900 psi)
- Compatible with DOT 3, 4, 5 and 5.1 brake fluids
- Rear axle set, application specific length and fittings
Vehicle compatibility and fitment notes are provided in the tabs above. Please confirm your model, chassis code, and brake configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | RS3 | 8V | - |
| Volkswagen | Golf R | 5G | - |
| Volkswagen | Golf R | CD | - |
Technical Specifications
| Spec | Value |
|---|---|
| Line Material | 304 stainless steel, braided |
| Core Material | PTFE (Teflon), smooth bore |
| Outer Jacket | PVC, smoked clear |
| Insert Colour | Red anodised |
| Connector Material | Cr3+ steel |
| Fitment Type | Application specific, direct fit (no adapters) |
| Proof Test Pressure | 20.7 MPa (3,000 psi) |
| Expansion Rate (Low Pressure) | 0.07 mL per 305 mm (1 ft) @ 6.9 MPa (1,000 psi) |
| Expansion Rate (High Pressure) | 0.11 mL per 305 mm (1 ft) @ 20.0 MPa (2,900 psi) |
| Certification | SAE "low-expansion" certified brake line |
| Fluid Compatibility | DOT 3, DOT 4, DOT 5 (silicone based), DOT 5.1 |
