AEM X-Series Boost Pressure Gauge Universal -30inHg/35psi

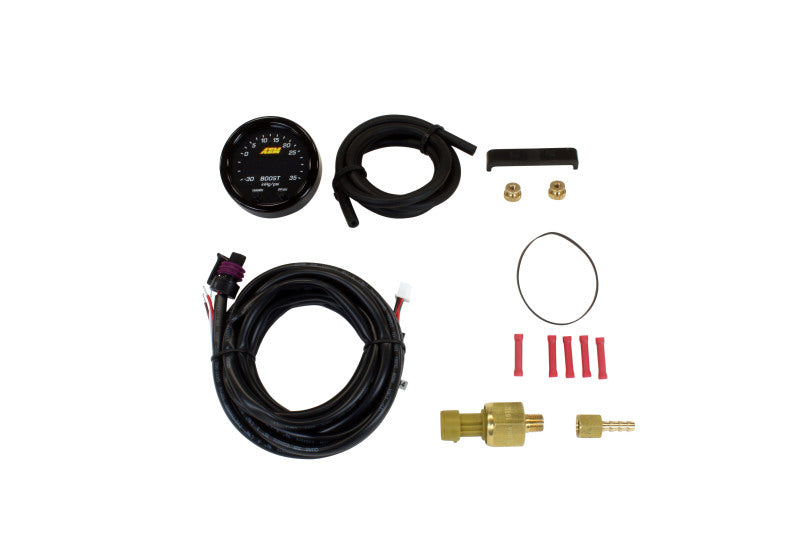

AEM X-Series Boost Pressure Gauge - Universal - -30inHg/35psi

AEM's X-Series range brings digital gauge technology to a compact, easy to read package. This Boost Pressure Gauge uses a sweeping LED needle and centre digital readout to give a clear, accurate view of vacuum and boost across a wide operating range, with onboard programmability that older analogue gauges can't match.

This listing covers the AEM X-Series Boost Pressure Gauge for universal fitment, suitable for petrol or diesel vehicles running turbo or supercharger boost monitoring where a -30inHg to 35psi range is required.

Key Features

• Two faceplate buttons for on the fly programmability
• Peak and recall function
• Selectable standard or metric readout on the centre LED display
• Sweeping LED needle for quick at a glance reading
• User selectable high and low threshold warnings
• AEMnet CAN-bus enabled, daisy chainable with Infinity ECU, Series 2 EMS or AQ-1 data logger
• 0-5V analog output for third party loggers and ECUs

Specifications

• Range: -30inHg to 35psi (approximately -1.0 to 2.4 bar)
• Communication: AEMnet CAN-bus
• Analog output: 0-5V

Wiring diagrams, mounting details, and further technical notes are provided in the tabs above. Please confirm your gauge pod or mounting solution suits a standard 52mm gauge before ordering.

Not sure if this gauge suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
