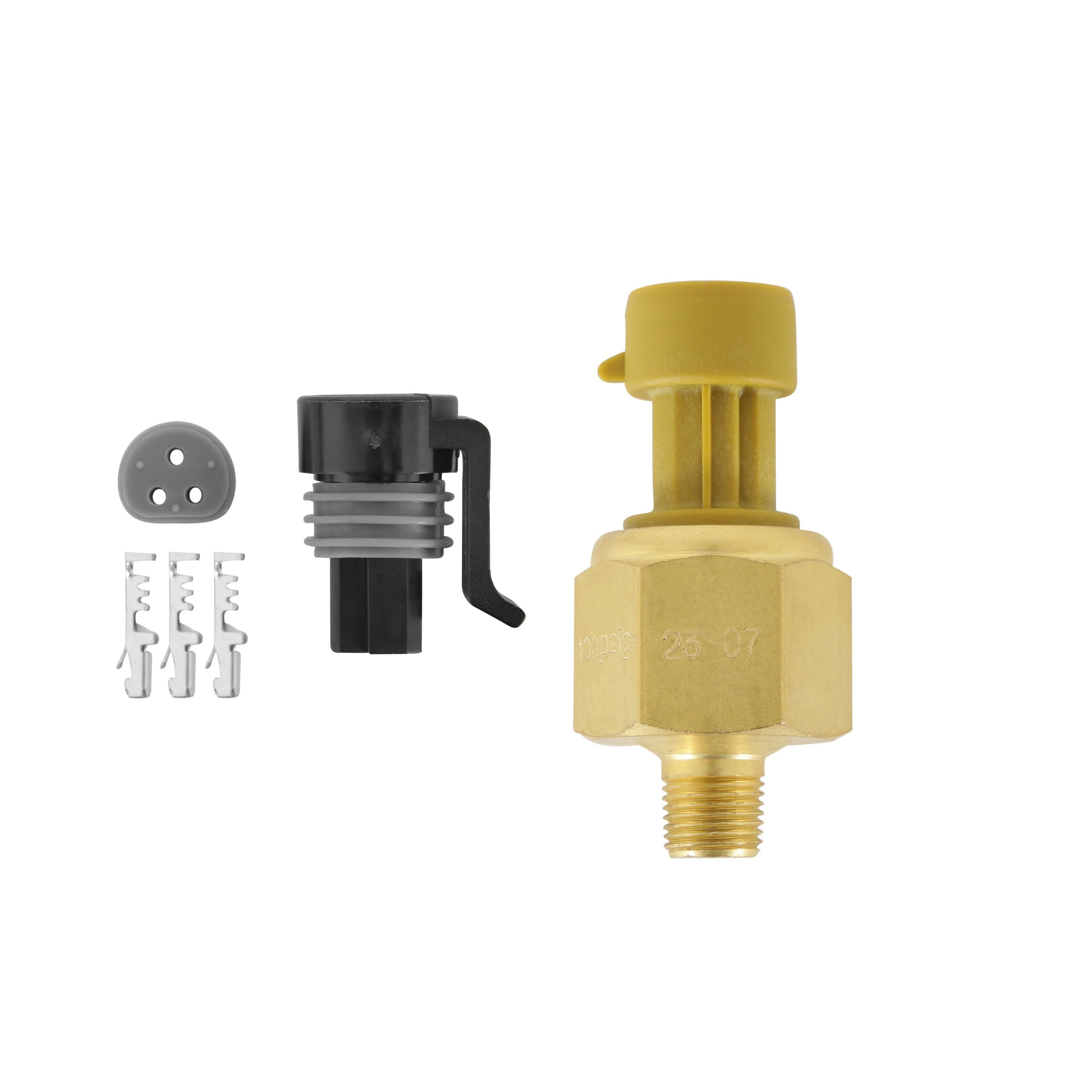

AEM 100 PSIG Brass Sensor Kit – 1/8" NPT Male Thread

The AEM 100 PSIg Brass Pressure Sensor Kit is a cost-effective solution for monitoring pressure in fuel, oil, brake, or nitrous systems where ECU calibration is not critical. With a 1/8" NPT male thread and analog output scaled for easy data reference, this sensor is ideal for gauge integration, general logging, and performance applications requiring reliable pressure feedback.

Gauge Pressure Simplified
This is a PSIg sensor, meaning it measures gauge pressure, or pressure relative to atmospheric conditions. When exposed to ambient air at sea level, the sensor reads 0 PSIg—making it perfect for systems that do not require vacuum measurement, such as fuel and brake circuits.

Brass vs Stainless – Choose Based on Precision Needs

• Brass Sensor = Ruler – Use for general reference, boost gauges, and basic monitoring

• Stainless Sensor = Caliper – Use for precision ECU input and calibration-critical data

Key Features

• Pressure Range: 0–100 PSIg (gauge pressure)

• Sensor Type: Brass body with 1/8" NPT male thread

• Accuracy: ±3% of full scale

• Output: Analog voltage scaled across full 100 PSI range

• Sealing: High-quality sealed housing, resistant to automotive fluids

• Includes: Sensor, weather-resistant connector, and terminal pins

• Compatible With: Analog gauges, logging systems, and piggyback ECUs

Applications

• Fuel pressure sensors for street or enthusiast builds

• Oil pressure monitoring for general use

• Brake pressure reference data

• Nitrous bottle pressure feedback

• Boost reference gauges (not intended for MAP sensor calibration)
