Alcon CAR95 "Next Gen GT" 6-Piston Front Brake Calipers (Pair) - 30.2/34.9/38.1mm Pistons - Universal

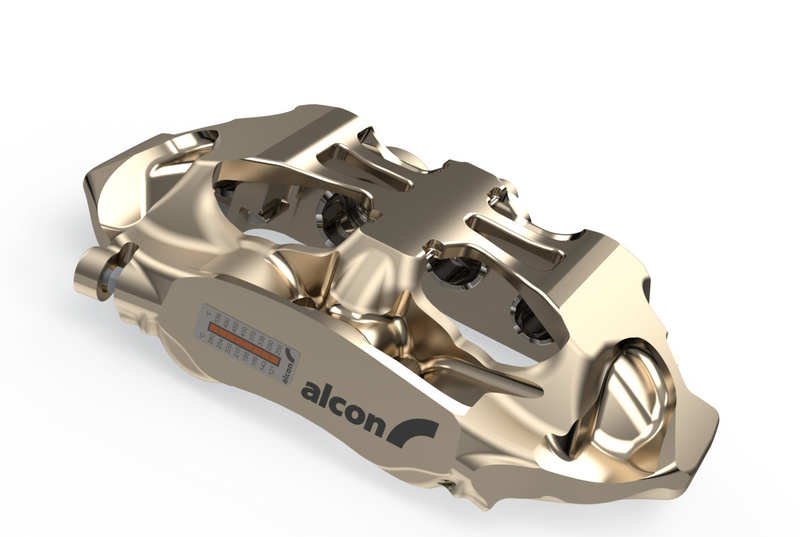

The Alcon CAR95 "Next Gen GT" is a forged aluminium monobloc 6-piston caliper with a topology-optimised body, so material sits only where it is needed for stiffness. It is finished in electroless nickel plating (ENP) for corrosion resistance and runs six stainless steel pistons, two each of 30.2 / 34.9 / 38.1mm, to spread clamping force evenly and reduce pad taper wear. It suits discs up to 395mm diameter and 32mm thick. It is a different caliper from the billet CAR95 GT race caliper for 36mm discs offered in some of our Alcon big brake kits.
This pair is the trailing-mount version (left and right). For a lower-priced CAR89 alternative, see the CAR89 "ENP" or CAR89 "TA6".
Note: Sold as a pair (left and right), trailing orientation. Needs brackets, pads and rotors to suit your car; no vehicle-specific fitment is stated by Alcon. Installation by a professional is recommended.
Features
- Forged aluminium alloy monobloc body, topology-optimised
- Electroless nickel plated (ENP) finish
- 6 stainless steel pistons: 2 x 30.2, 2 x 34.9 and 2 x 38.1mm
- 2kg anti-knockback springs
- For discs up to 395mm diameter and 32mm thick
- Takes pads up to 30mm thick (92.6cm² per pad)
- Alcon thermal strip (121-280°C) fitted
- Trailing mounting orientation
Need help choosing the right setup? Contact our team at sales@chicaneaustralia.com.au.
No instructions available for this product.
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
| Overview |
 CAR97 "MONO6" Full Specs |
 CAR70 "RC6" Full Specs |
 CAR99 Full Specs |
 CAR89 "TA6+" Full Specs |
 CAR89 Motorsport Full Specs |
 CAR89 "Billet" Full Specs |
CR6420 Full Specs |
|---|---|---|---|---|---|---|---|
| Category | Performance Street | Performance Street | Premium Street | Street / Track | Dedicated Track | GT / Touring Car | GT / Touring Car |
| Construction | Monobloc Cast | 2-Piece Forged | Monobloc Billet | Forged Aero | Billet Aero | Monobloc (1-Piece) | Billet Aero |
| Piston Sizing | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.0 / 31.8 / 38.1mm |
| Overview |
 CAR69 "RC4" Full Specs |
 CAR23 Full Specs |
 CRB343 Full Specs |
 CRB332 Full Specs |
|---|---|---|---|---|
| Category | Performance Street | Dedicated Track | Dedicated Track | Dedicated Track |
| Construction | 2-Piece Forged | Billet Monobloc | Radial Mount | Radial Mount |
| Piston Sizing | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm |
| Overview |
 CAR98 "MONO4" Full Specs |
CAR69 "RC4" Full Specs |
 CAR49 "TA4+" Full Specs |
|---|---|---|---|
| Category | Performance Street | Performance Street | Street / Track |
| Construction | Monobloc Cast | 2-Piece Forged | Forged Aero |
| Piston Sizing | 31.8 / 31.8mm | 31.8 / 31.8mm | 31.8 / 31.8mm |
| Overview |
 CRR300 Full Specs |
 CRR280 Full Specs |
|---|---|---|
| Category | Dedicated Track | Dedicated Track |
| Construction | Radial Monobloc | Radial Mount |
| Piston Sizing | 28.6 or 34.9mm | 2-Piston |
