Garrett PowerMax Turbocharger Subaru WRX (VA) / Forester XT (SJ) / Levorg (VM)

Garrett PowerMax Turbocharger - Subaru WRX (VA) / Forester XT (SJ) / Levorg (VM)

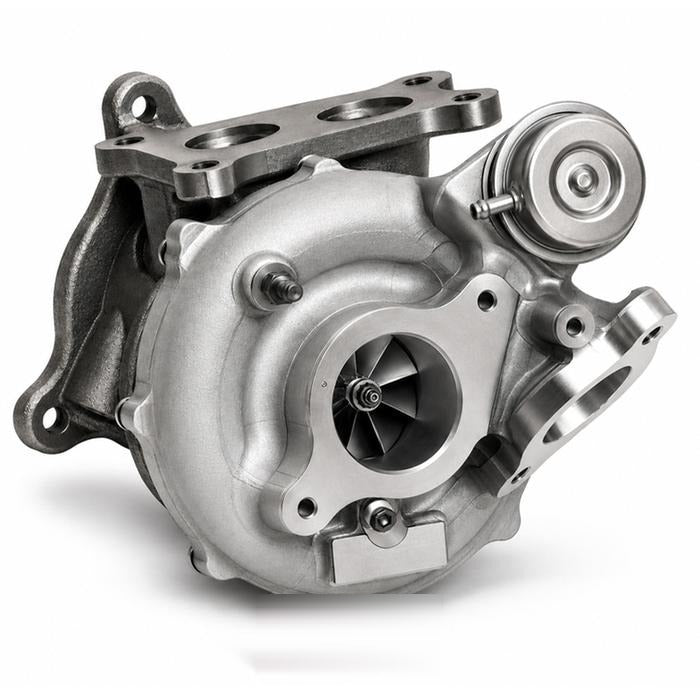

The Garrett PowerMax 953292-5001S is a direct-fit upgrade turbocharger for the Subaru 2.0L FA20 DIT engine in the WRX (VA), Forester XT (SJ) and Levorg (VM). It bolts in using the factory mounting points and connections, and its forged, fully machined 49mm compressor wheel flows 18% more air than the factory turbo, supporting up to 480 BHP (353 kW).

Note: Fits FA20F/FA20E direct-injection turbo engines with the factory Garrett MGT2259S/MGT2259LS turbo only. It does not fit the naturally aspirated FA20D (BRZ, Toyota 86). Gasket kit sold separately. Garrett recommends a re-tune to get the full gain, such as the COBB Accessport V3 - Subaru WRX (VA) - Australian Spec. Maximum turbo speed is 185,000 rpm.

Features

• Direct-fit replacement for the factory MGT2259S turbo, no fabrication
• Forged, fully machined 49mm compressor wheel
• +18% compressor flow over the factory turbo
• Supports up to 480 BHP (353 kW)
• Calibrated wastegate actuator for straightforward installation
• Machined speed sensor port for turbo speed monitoring

Pairs Well With

• COBB Accessport V3 - Subaru WRX (VA) - Australian Spec
• KORSH Catted J-Pipe – Subaru WRX (VA) / Subaru Levorg (VM) / Subaru Forester XT (SJ)
• COBB Cast Turbo Inlet - Subaru WRX (VA) / Forester XT (SJ)
• PERRIN EBCS Pro Boost Control Solenoid - Subaru WRX (VAG/VBH/VNH) MY15-21 / Forester XT (SJG/SK) MY15-21
• PERRIN Turbo Support Bracket - Subaru Forester (SJG) / WRX (VAG)
