BMR Suspension Rear Cradle Lockout Bushing Kit Chevrolet Camaro (Gen 6)

BMR Suspension Rear Cradle Lockout Bushing Kit - Chevrolet Camaro (Gen 6)

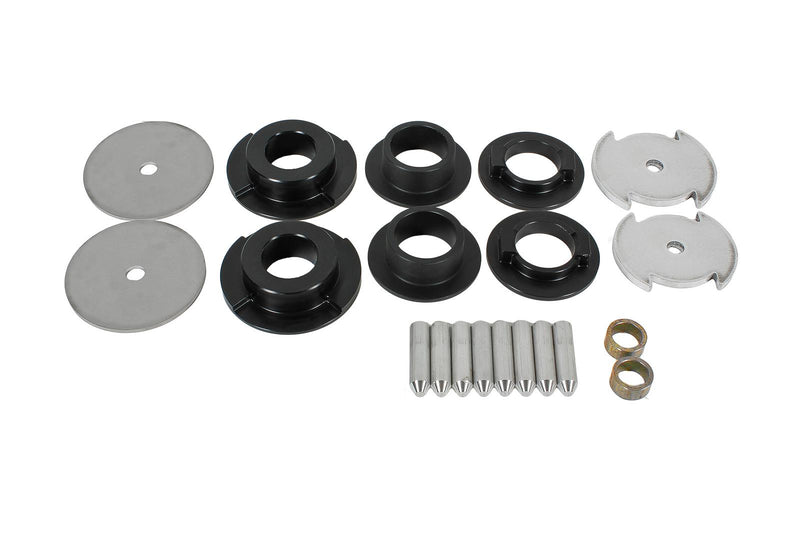

The BMR Suspension BK063 locks out the voids in the factory rear cradle bushings on the Chevrolet Camaro (Gen 6), cutting the cradle movement that is one of the main causes of wheel hop. CNC-machined Delrin inserts fill the top of the front and rear bushings, billet aluminium "bullet" inserts fill the remaining hollow space, and laser-cut washers hold the lower inserts in place. In BMR's testing, fore/aft and lateral cradle deflection dropped by 80-90% and vertical deflection by 95% or more, with no noticeable change in noise or vibration on an otherwise standard car. It suits street, drag and circuit use and is made in the USA.

Note: Bolt-on kit that keeps the factory bushings and uses the factory bolt holes and hardware. GM classes the main cradle bolts as single-use torque-to-yield bolts and recommends fitting new ones (front GM 11547921, rear GM 11611819). A wheel alignment is recommended afterwards. Installation by a professional is recommended.

Features

• Fills the voids in the factory front and rear cradle bushings
• CNC-machined Delrin upper and lower inserts
• 6061-T6 billet aluminium bullet inserts
• Laser-cut stainless steel and aluminium lower support washers
• Reduces wheel hop and cradle deflection under launch and cornering
• 100% bolt-on, no fabrication, simple hand tools
• Made in the USA
