Wagner Tuning Competition Intercooler Kit Fiat 500 Abarth

Wagner Tuning Competition Intercooler Kit - Fiat 500 Abarth

Wagner Tuning builds high performance charge cooling hardware developed through CAD design and CFD simulation, and this competition intercooler kit is a direct upgrade for the Fiat 500 Abarth. It replaces the restrictive factory side mounted coolers with a single large front mounted core for a genuine step up in cooling capacity and throttle response.

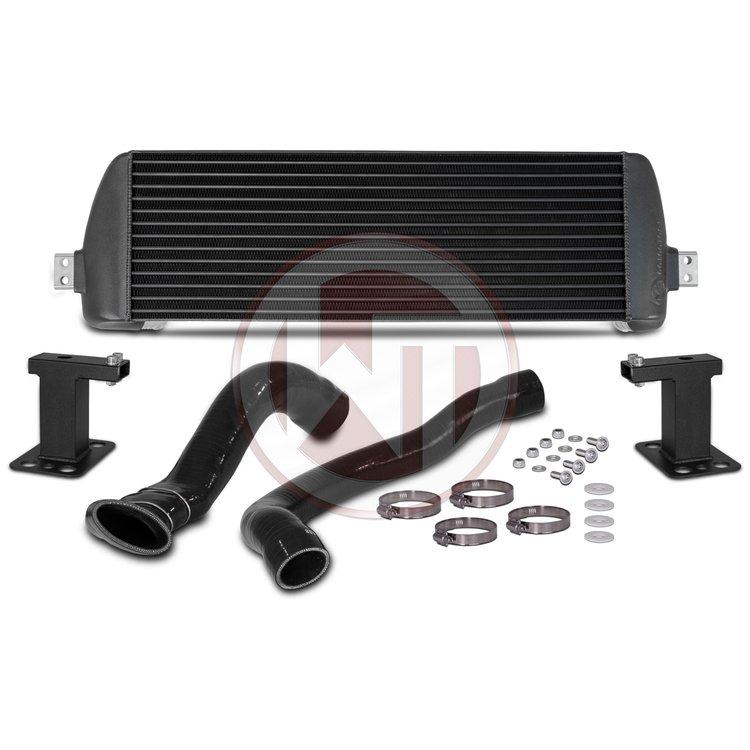

This listing covers the Fiat Abarth 500 1.4 Turbo (99 kW/135 PS, 2008 onwards). The kit includes a new Tube Fin competition core with cast aluminium endtanks, a mounting cross member, silicone hoses and clamps, plus all mounting hardware for a plug and play installation in place of the original units.

Specifications

• Core dimensions: 600 mm x 204.6 mm x 80 mm (9.8 L)
• Stock intercooler dimensions: 190 mm x 175 mm x 64 mm (4.3 L)
• 85% larger frontal surface area, 131% more core volume than stock
• Frontal area: 1227 cm² (stock: 665 cm²)
• CAD designed, CFD optimised cast aluminium endtanks
• Elliptical outlet hose connection for shorter charge air path
• Anti corrosion, heat conductive coating
• Kit includes: intercooler, cross member, silicone hoses, clamps, mounting hardware, installation instructions

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and configuration are confirmed before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
