Radium Engineering 6AN ORB Swivel Banjo Bulkhead Fittings Universal

$59.99
SKU: 20-1000-0606-375
Fitting
💬
Need help choosing the right part?

Not sure which option fits your application? Contact Us — we're happy to help.

$17.95 Flat Shipping
Australia-wide
100% Genuine Parts
Warranty backed
Aussie Support
Local team
Guaranteed Safe Checkout
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Radium 20-1000-0606-375 swivel banjo bulkhead fitting - 6AN ORB, 3/8" SAE male and 6AN male - Radium Engineering Thumbnail Radium 20-1000-06375-85 swivel banjo bulkhead fitting - 6AN ORB, 8.5mm barb and 3/8" SAE male - Radium Engineering Thumbnail Radium low-profile swivel banjo fitting range (product illustration) - Radium Engineering Thumbnail

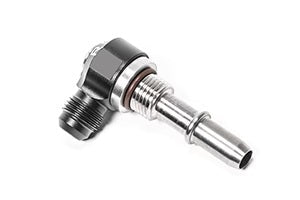

Radium 20-1000-0606-375 swivel banjo bulkhead fitting - 6AN ORB, 3/8" SAE male and 6AN male - Radium Engineering
Radium Engineering 6AN ORB Swivel Banjo Bulkhead Fittings 3/8" SAE Male and 6AN Male$59.99

Radium Engineering 6AN ORB Swivel Banjo Bulkhead Fittings - Universal

These Radium Engineering swivel banjo bulkhead fittings screw into a 6AN ORB port and give a low-profile, 90-degree connection that swivels a full 360 degrees, even once installed. Each one has a 3/8" SAE quick connect male outlet paired with either a 6AN male flare (SKU 20-1000-0606-375) or an 8.5mm hose barb (SKU 20-1000-06375-85).

They suit Radium fuel hangers and any other 6AN ORB threaded surface. Choose the version you need from the variant selector; the fittings are sold individually.

Note: Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before fitting to avoid damaging it. Do not exceed 400 psi. Installation by a professional is recommended.

Features

  • 6AN ORB (9/16"-18) inlet thread
  • 360-degree swivel, even after installation
  • Low profile: 0.797" (20.2mm) installed height
  • Rated to 400 psi for fuel and oil systems
  • Suits all fuels including E85, oil and engine coolant
  • Anodised aluminium construction

Pairs Well With

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
