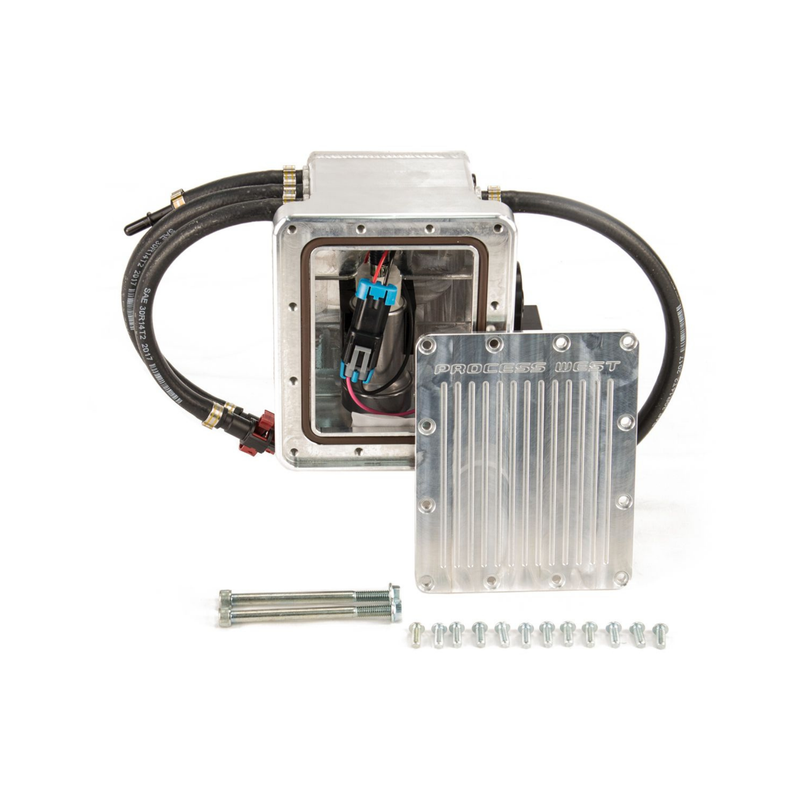

Anti-Surge Fuel System w/ Single Walbro 460 Pump - Ford Falcon BA/BF
Process West has been refining fuel delivery for turbocharged Falcons for well over a decade, and this anti-surge system is the result of that ongoing development. Originally released back in 2007 and updated in 2013 to suit modern fuel types and higher power demands, it remains the benchmark solution for reliable fuel supply under load in the Ford Falcon BA/BF.
This listing covers the single pump version of the Process West anti-surge system (SKU PWBAFS01), fitted with one internally mounted Walbro 460LPH pump housed in an externally mounted, chassis rail mounted surge vessel. It's a true plug and play unit designed as a direct replacement for the factory setup, with no in-tank modification required. The system is also upgradable, so a second pump and matching fitting kit can be added later if your power goals increase.
Specifications
- Single internally mounted Walbro 460LPH pump
- Externally mounted, chassis rail mounted billet anti-surge vessel
- Not an in-tank system
- Supports up to 680 rear wheel kilowatts
- True plug and play installation with factory wiring and fuel rail
- Upgradable to twin pump configuration with optional Stage 1 or Stage 2 fitting kits
- Compatible with 5/16in hose tail barbs or -6 AN Speedflow fittings
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your Falcon's model year and fuel system configuration before ordering.
Not sure if this fuel system suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Falcon | BA/BF | - |
Technical Specifications
| Spec | Value |
|---|---|
| Pump Type | Walbro 460LPH (single, expandable to twin pump configuration) |
| Vessel Mounting | Externally mounted anti-surge vessel, chassis rail mounted (not an in-tank system) |
| Vessel Construction | Billet |
| Max Power Support (single pump) | 680 kW (rear wheel) |
| Optional Fuel Pressure Regulator | Turbosmart FPR1200 |
| Stage 1 Fitting Kit Compatibility | Factory fuel rail, combines twin pump outlets, includes factory FPR by-pass plug |
| Stage 2 Fitting Kit Compatibility | Aftermarket dual entry fuel rail, keeps pump outlets separate |
| Hose/Fitting Size (Stage 2 kit) | -6 AN (9.5 mm / 3/8 in), AN Speedflow fittings |
| Alternative Fitting Option | 5/16 in (7.9 mm) hose tail barbs |
No instructions available for this product.
