COBB Front Mount Intercooler Kit Subaru WRX STI (VA) 2015-2017

COBB Front Mount Intercooler Kit - Subaru WRX STI (VA) - 2015-2017

The factory top mount intercooler on the 2015-2021 Subaru WRX STI (VA) heat soaks easily, which raises intake temperatures and costs power. This COBB kit replaces it with a front mount 610 x 279 x 102mm (24" x 11" x 4") bar and plate core and 64mm (2.5") mandrel-bent aluminium piping, for cooler charge air and more consistent power. A BPV adapter plate lets you run the factory bypass valve, a COBB XLE bypass valve or any valve with factory-style fitment, and the cold pipe has a built-in IAT sensor bung for an easy speed density conversion.

Video

Product overview – COBB front mount intercoolers for the Subaru WRX and STI

Two core finishes are available: black or silver. The piping is wrinkle black powder coat with either core.

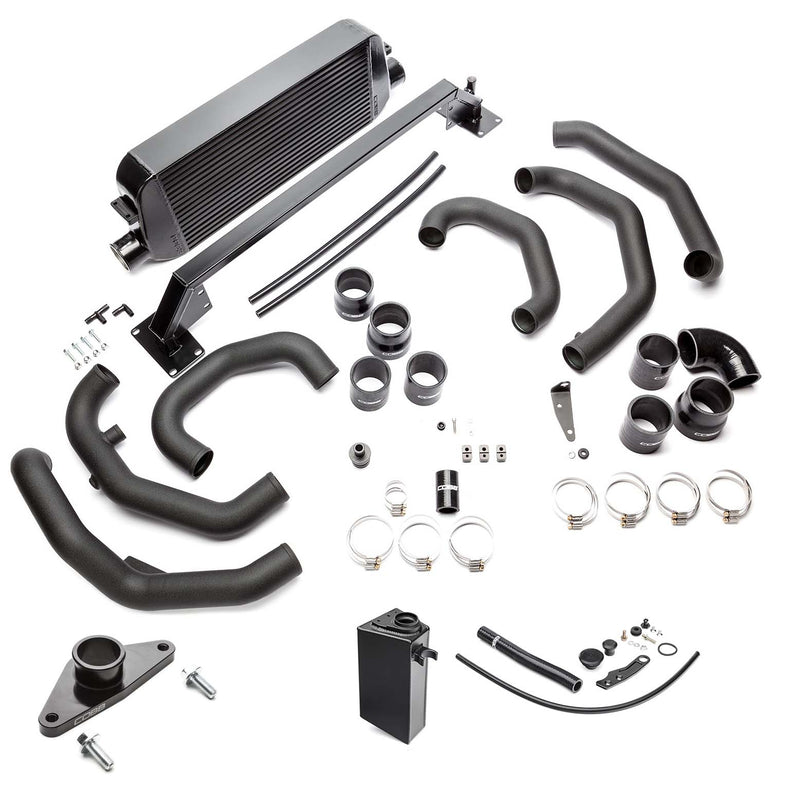

What's Included

• COBB front mount intercooler core with bumper beam (black or silver)
• COBB hot pipe kit
• COBB cold pipe kit with IAT sensor bung
• COBB BPV adapter
• COBB coolant overflow tank
• Washer fluid filler neck

Note: Fits the 2015-2017 WRX STI (VA) only. Designed to work with the COBB SF intake and airbox; COBB can't confirm fit with other intakes. A tune is required: COBB says a custom tune or a matching Stage Power Package map is needed. The bumper cover needs no cutting, but the under tray needs minor trimming. Installation by a professional is recommended.

Features

• 610 x 279 x 102mm (24" x 11" x 4") bar and plate core
• Core in a black or silver heat-dissipating coating
• 64mm (2.5") mandrel-bent aluminium piping in wrinkle black powder coat
• Built-in IAT sensor bung in the cold pipe
• BPV adapter suits the factory, COBB XLE or factory-style bypass valve
• Built-in mount for the factory tow hook or a number plate bracket
• No bumper cutting, and the factory side crash supports stay in place

Pairs Well With

• COBB Front Mount Intercooler Hot Pipe Kit - Subaru WRX (VA)
• COBB Front Mount Intercooler Cold Pipe Kit - Subaru WRX (VA)
• COBB TMIC Coupler - Subaru Impreza WRX (GE/GH/GR/GV) / WRX (VA) / Liberty GT (BL/BP)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
