COBB Front Mount Intercooler Kit Subaru Impreza WRX/STI (GD/GG)

COBB Front Mount Intercooler Kit - Subaru Impreza WRX/STI (GD/GG)

The factory top mount intercooler on the 2004-2007 Subaru Impreza WRX and WRX STI works hard and heat soaks, which raises intake temperatures and costs power. This COBB kit replaces it with a front mount 762 x 263 x 89mm (30" x 10.35" x 3.5") bar and plate core and 64mm (2.5") mandrel-bent aluminium piping in wrinkle black powder coat. A BPV adapter plate lets you run the factory bypass valve, a COBB XLE bypass valve or any valve with factory-style fitment, and the cold pipe has a built-in IAT sensor bung for an easy speed density conversion.

Video

Product overview – COBB front mount intercoolers for the Subaru WRX and STI

Two core finishes are available: silver or black. The piping is wrinkle black powder coat with either core.

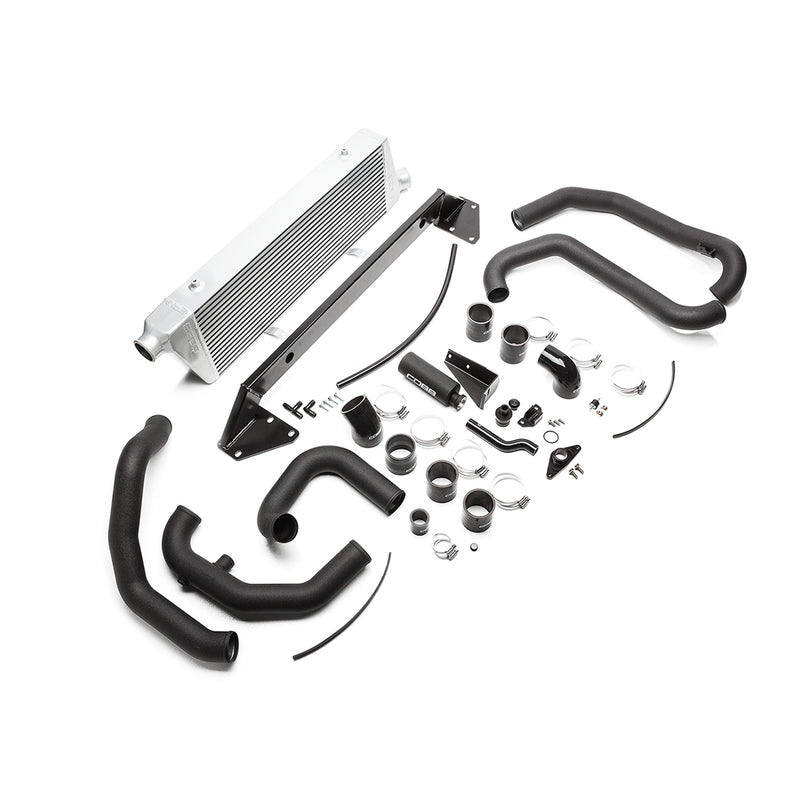

What's Included

• COBB front mount intercooler core with bumper beam (silver or black)
• COBB hot side intercooler pipes
• COBB cold side intercooler pipes with IAT sensor bung
• COBB BPV adapter
• COBB coolant overflow tank with washer fluid filler relocation kit

Note: Requires the COBB SF intake. It is designed for the COBB SF intake and airbox; the airbox must be trimmed using the supplied template, and COBB can't confirm fit with other intakes. Installation by a professional is recommended.

Features

• 762 x 263 x 89mm (30" x 10.35" x 3.5") bar and plate core
• Core in a silver or black heat-dissipating coating
• 64mm (2.5") mandrel-bent aluminium piping in wrinkle black powder coat
• Built-in IAT sensor bung in the cold pipe
• BPV adapter suits the factory, COBB XLE or factory-style bypass valve
• Includes a COBB coolant overflow tank and washer fluid filler relocation

Pairs Well With

• COBB Front Mount Intercooler Hot Pipes - Subaru Impreza WRX/STI (GD/GG)
• COBB Front Mount Intercooler Cold Pipes - Subaru Impreza WRX/STI (GD/GG)
• COBB Post MAF Hose - Subaru Impreza WRX/STI (GD/GG) / Forester XT (SG)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
