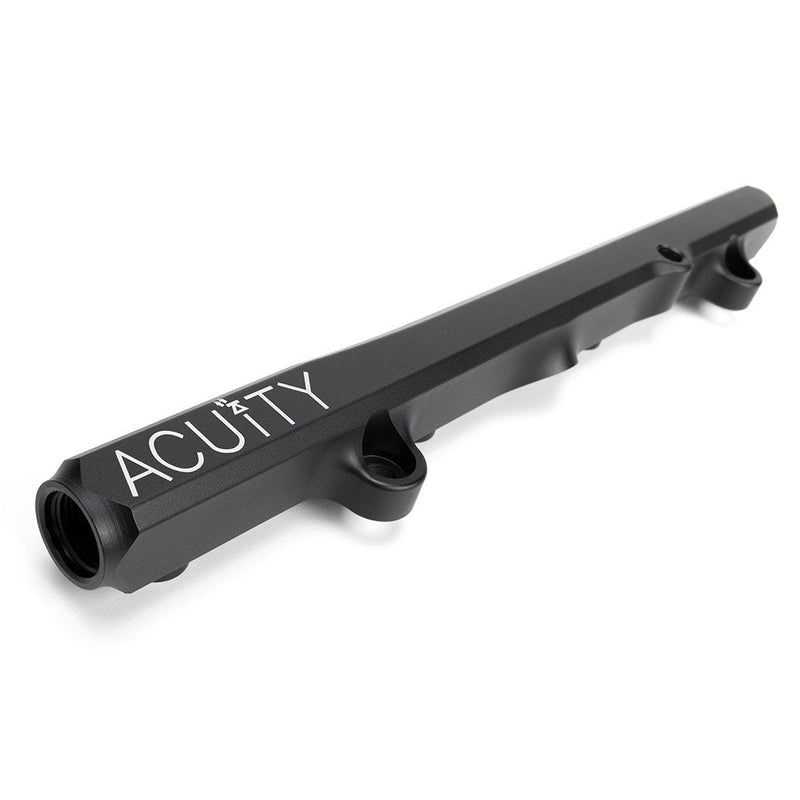

ACUITY K-series fuel rail, Honda K-series, satin black – ACUITY logo end, angled view - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – side view with mounting screws and NPT plug - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – injector side showing the four injector bores - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – close-up of the centre-feed and end ports - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – with an injector fitted (injector not included) - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – end close-up of the -8 ORB port - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – close-up of the gauge port and mounting tab - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – with a black gauge on top (gauge sold separately) - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin black – with a stainless gauge on top (gauge sold separately) - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin purple – ACUITY logo end, angled view - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin purple – side view with mounting screws and NPT plug - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin purple – injector side showing the four injector bores - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin purple – with an injector fitted (injector not included) - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin purple – with a black gauge on top (gauge sold separately) - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin teal – ACUITY logo end, angled view - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin teal – side view with mounting screws and NPT plug - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin teal – injector side showing the four injector bores - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin teal – with an injector fitted (injector not included) - Acuity Thumbnail ACUITY K-series fuel rail, Honda K-series, satin teal – with a stainless gauge on top (gauge sold separately) - Acuity Thumbnail
ACUITY K-series fuel rail, Honda K-series, satin black – ACUITY logo end, angled view - Acuity
ACUITY K-Series Fuel Rail Satin Black$330.00

ACUITY K-Series Fuel Rail - Honda Civic Type R (EP3 / FN2 / FD2) / Integra (DC5)

The ACUITY K-Series Fuel Rail is a high-flow billet replacement for the factory rail on port-injected Honda K20 and K24 engines, including the K20A in the DC5 Integra Type R and EP3, FN2 and FD2 Civic Type R, and K-swapped cars. The 15mm bore supports more than 1000 hp of fuel flow.

Video

ACUITY K-series fuel rail: setups and fitting selection explained

The rail has -8 ORB ports at both ends and in the centre, plus a 1/8 NPT port on top for a fuel pressure gauge. With ACUITY’s fittings you can run it with the factory quick-connect fuel line, a tucked centre-feed or side-feed -6AN line, or a -6AN or -8AN return setup for K-swaps and high-power builds. A side-mounted gauge is also possible with the 1913-F05 adapter.

It is machined from 6061-T6 aluminium with a satin anodised finish and laser-etched markings. Countersunk mounting holes take the supplied class 10.9 screws in place of the factory studs, the port ends are shaped to help protect the finish from spanner marks, and the factory injector clips can still be used.

Note: Suits most port-injected K-series engines; does not suit the direct-injected K20C or K20B. Fittings are sold separately and vary by car and fuel line setup (1913-F02 plug, F03 -6AN, F04 -8AN, F05 1/8 NPT, F06 short and F07 long 5/16" quick-connect). Use PTFE thread sealant, not tape, on fuel fittings. Installation by a professional is recommended.

Features

  • 15mm (0.59") bore, supports 1000+ hp
  • -8 ORB centre-feed port for tucked fuel lines
  • -8 ORB end ports for factory, side-feed or return setups
  • 1/8 NPT port for a top-mounted fuel pressure gauge
  • 6061-T6 billet aluminium, satin anodised finish
  • Class 10.9 zinc-plated mounting screws replace the factory studs
  • Retains the factory injector clips
  • Stainless 1/8 NPT plug included

Kit Contents

  • 1 x ACUITY K-series fuel rail
  • 2 x class 10.9 mounting screws
  • 1 x stainless steel 1/8 NPT plug
