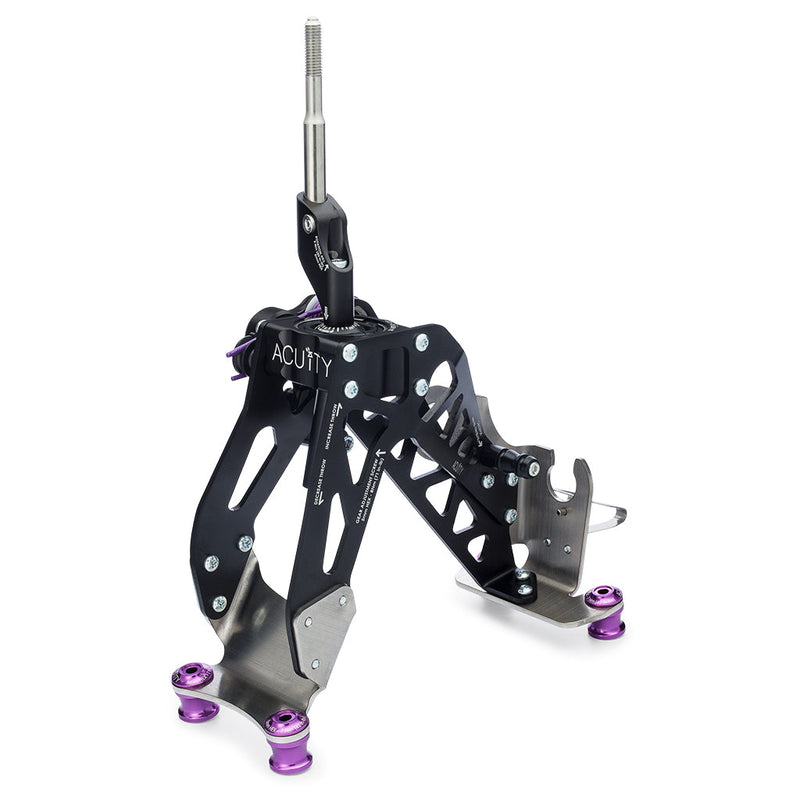

ACUITY short shifter, FK8 Civic Type R – front three-quarter view with purple base bushings - Acuity
ACUITY Fully Adjustable Performance Short Shifter $845.00

ACUITY Fully Adjustable Performance Short Shifter - Honda Civic Type R (FK8)

The ACUITY Fully Adjustable Performance Short Shifter replaces the factory shifter in the FK8 Civic Type R. Gear throw and gate spacing adjust independently, so you can set the H-pattern from a mild reduction to a very short, narrow shift. The knob height and position also adjust, with laser markings showing the safe range.

The frame combines aluminium and stainless steel for stiffness without extra weight. A large aluminium pivot ball runs in a wear-compensating spherical race, and the rocker joint is upgraded over the OEM design, so the shifter resists the play that develops in the factory unit. A thick over-wound spring gives quick, consistent centering.

Expect a firmer, more direct shift with more feedback from the gearbox than stock or a Stage 2 kit. Take time to tune the throw and gate spacing before refitting the console.

Note: Suits the manual FK8 Civic Type R and works in RHD cars. Works with M10x1.5 and OEM Honda shift knobs. Installation by a professional is recommended.

Features

  • Throw adjustable, 15% to 46% shorter than stock on the FK8
  • Gate spacing adjustable, from 10% wider to 30% narrower than stock on the FK8
  • Knob height adjustable +24mm / −10mm compared to stock
  • Aluminium and stainless steel frame
  • Honed bronze bushings and wear-compensating spherical joints
  • Stiffer over-wound spring for sharper centering
  • Aluminium base bushings with an o-ring design that stays on the shifter during install
  • Fits M10x1.5 and OEM Honda shift knobs

Kit Contents

  • 1 x ACUITY 10th Gen adjustable shifter body (with aluminium base bushings)
  • 1 x 10th Gen mid-rod assembly
  • 4 x M6 mounting bolts
  • 1 x M5 cable support bolt
  • 1 x cable preload post
  • 1 x cable support o-ring
