PARAGON Rotor Rings 300 x 25.4mm, PCD 158.8, 10-Bolt, 10mm Vane Gap

PARAGON Rotor Rings – 300 x 25.4mm, PCD 158.8, 10-Bolt, 10mm Vane Gap

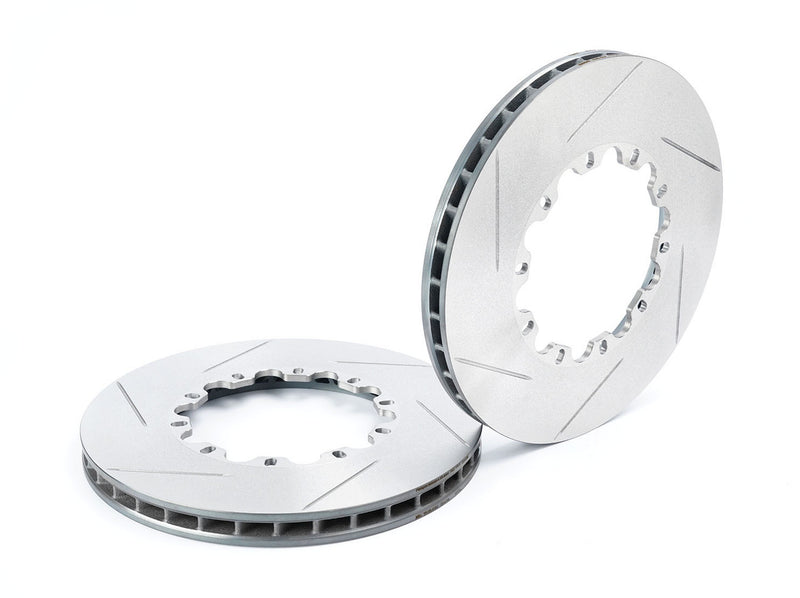

Paragon Performance replacement rotor rings for 2-piece floating brake rotors measuring 300 x 25.4mm on a 158.8mm PCD, with 10 oval mountings (8 x 12mm). Each ring is cast from CM-250 high-carbon alloy iron with 48 directional vanes that pull air through the disc, so it runs up to 30% cooler than an OE rotor.

The rings are heat treated to relieve stress, then CBN machined for quick pad bedding. Lateral run-out is held within 0.03mm and balance within 2 g, which keeps judder down. The slotted face keeps the pad surface clean and helps in the wet. Sold as a left and right pair.

Note: Hat hardware is sold separately. Paragon recommends new hardware when replacing rings; its rotor assembly instructions give the torque specs. Confirm PCD (158.8mm), mountings (10 x 8 x 12mm oval) and max pad depth (50mm) match your assembly before ordering. Installation by a professional is recommended.

Features

• 300 x 25.4mm ring, PCD 158.8mm
• 10 oval mountings (8 x 12mm)
• 48 directional vanes, up to 30% cooler than OE rotors
• CM-250 high-carbon alloy cast iron, heat treated and CBN machined
• Run-out within 0.03mm; balanced within 2 g
• Slotted face for consistent bite and wet-weather performance
• Floating 2-piece design reduces fade and judder

Kit Contents

• 1 x pair of rotor rings (left and right)
• Installation manual

Technical drawing: Paragon ring drawing (PDF)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
