PARAGON Rotor Rings 282 x 12mm, PCD 181, 8-Bolt

PARAGON Rotor Rings – 282 x 12mm, PCD 181, 8-Bolt

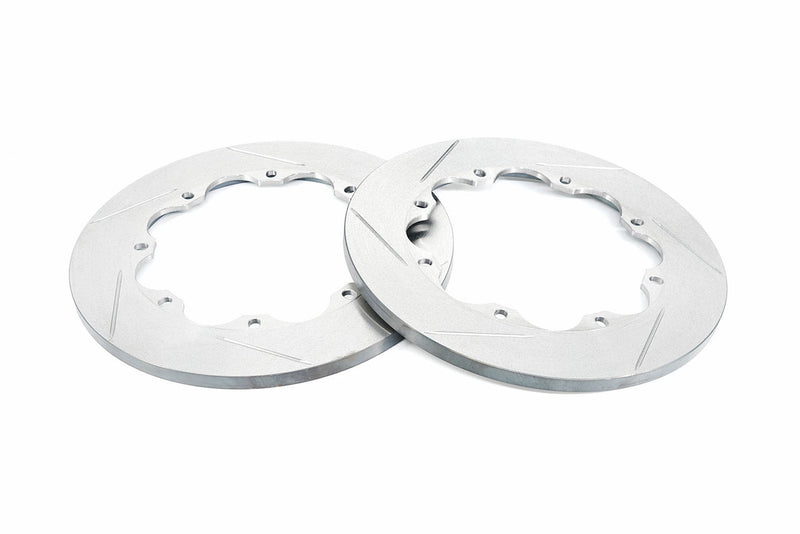

Paragon Performance replacement rotor rings for 2-piece floating brake rotors measuring 282 x 12mm on a 181mm PCD, with 8 oval mountings (8 x 10.25mm). Each solid ring is cast from CM-250 high-carbon alloy iron for strong bite, high-temperature strength and good thermal capacity.

The rings are heat treated to relieve stress, then CBN machined for quick pad bedding. Lateral run-out is held within 0.03mm and balance within 2 g, which keeps judder down. The slotted face keeps the pad surface clean and helps in the wet. Sold as a left and right pair.

Note: Hat hardware is sold separately. Paragon recommends new hardware when replacing rings; its rotor assembly instructions give the torque specs. Confirm PCD (181mm), mountings (8 x 8 x 10.25mm oval) and max pad depth (41mm) match your assembly before ordering. Installation by a professional is recommended.

Features

• 282 x 12mm ring, PCD 181mm, D40.5 profile
• 8 oval mountings (8 x 10.25mm)
• Solid CM-250 ring for strong bite and thermal capacity
• CM-250 high-carbon alloy cast iron, heat treated and CBN machined
• Run-out within 0.03mm; balanced within 2 g
• Slotted face for consistent bite and wet-weather performance
• Floating 2-piece design reduces fade and judder

Kit Contents

• 1 x pair of rotor rings (left and right)
• Installation manual

Technical drawing: Paragon ring drawing (PDF)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
