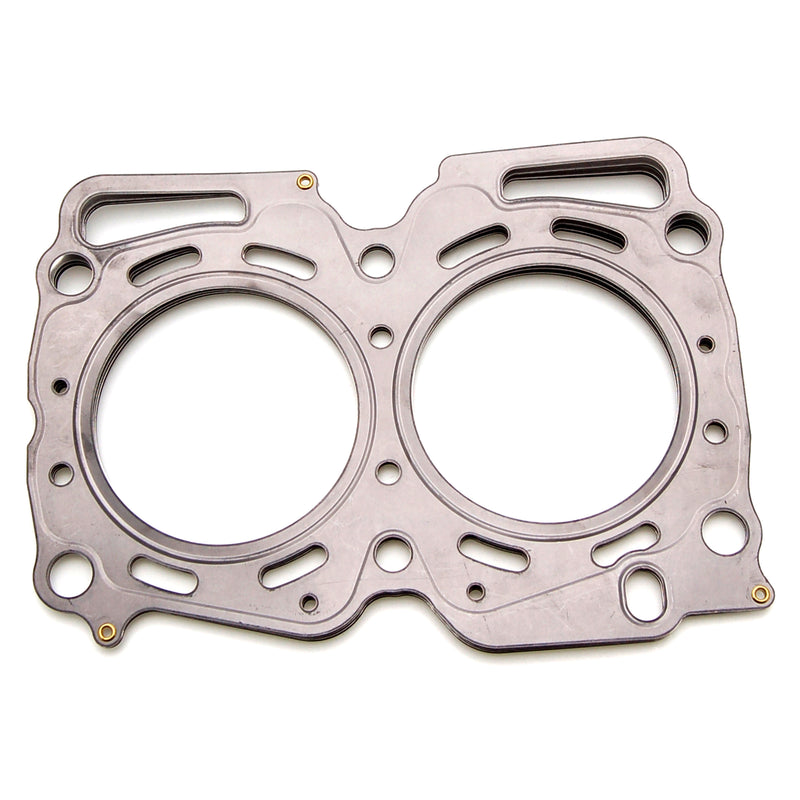

Cometic MLS Head Gasket (Single) Subaru EJ25 (to 2006) 100mm Bore

Cometic MLS Head Gasket (Single) – Subaru EJ25 (to 2006) – 100mm Bore

The Cometic MLS Head Gasket is a multi-layer stainless steel replacement for the factory head gasket on Subaru 2.5L EJ25 engines up to 2006: the EJ25D, EJ251, EJ252, EJ253 and EJ255 Version 1, and the 2004–2006 EJ257 from the GD Impreza WRX STI. It has a 100mm round bore and comes in a choice of compressed thicknesses, so you can match the stock deck height or set the compression ratio on a rebuilt engine.

Cometic's MLS (multi-layer steel) gasket is built from embossed stainless steel layers, with high-temperature coated outer layers that seal against the head and block. Because the overall thickness comes from the centre layer, Cometic can offer many thicknesses, which makes MLS the go-to for setting compression ratio or squish on a built engine.

Options

Compressed thickness: 0.76mm (.030"), 1.14mm (.045"), 1.52mm (.060"). Thicker gaskets lower compression; match the thickness to your engine builder's spec.

Note: Sold individually – an EJ engine needs two, one for each head. For EJ255 and EJ257 engines from 2007, choose the 101mm Version 2 gasket instead. Installation by a professional is recommended.

Features

• Cometic MLS multi-layer stainless steel construction
• Embossed, high-temperature coated outer layers seal against the head and block
• 100mm round bore
• Choice of compressed thickness to suit stock or built engines
• Installed dry – no sealant needed

Kit Contents

• 1 x Cometic MLS cylinder head gasket

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
