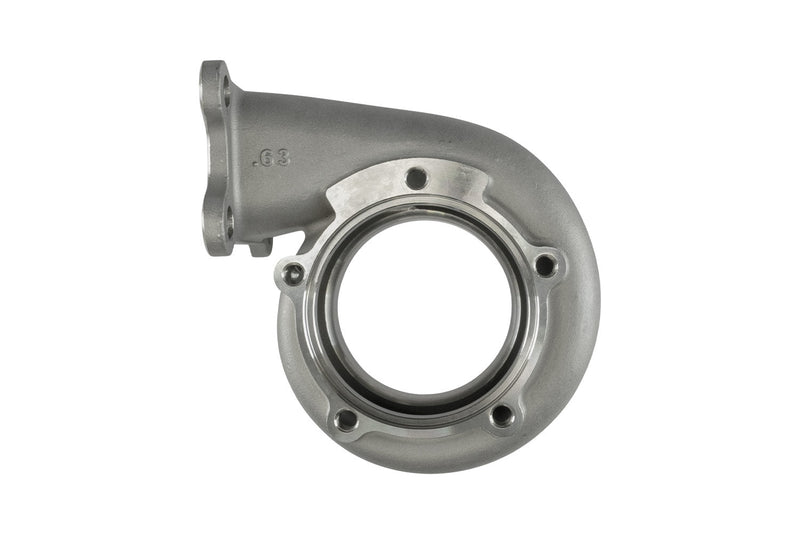

Turbosmart Turbine Housing - Suits TS-1 / TS-2 B-Frame - 66mm
Replacement turbine housing for Turbosmart TS-1 and TS-2 B-Frame turbochargers with the 66mm turbine wheel (exducer). Each housing is investment cast in 310S stainless steel and CFD designed, with the A/R and volute tongue position optimised for the turbine wheel while keeping weight down.
Note: Choose the inlet flange and A/R to suit your manifold and power target. Reverse Rotation housings suit reverse rotation turbos only; standard housings do not suit reverse rotation models. The Internal Wastegate housing is the version used on Turbosmart's internally wastegated V-band turbos. Installation by a professional is recommended.
Need help choosing a turbine housing? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Turbosmart TS-1 / TS-2 B-Frame 66mm turbine | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Suits | Turbosmart TS-1 and TS-2 B-Frame turbos with 66mm turbine exducer (6466B) |
| Frame | B-Frame |
| Turbine exducer | 66mm |
| Material | 310S stainless steel, investment cast |
| Housing options | T3 0.63 A/R, T3 0.82 A/R, T3 1.10 A/R, T4 0.82 A/R, T4 0.82 A/R Reverse Rotation, T4 0.96 A/R, T4 Divided 0.84 A/R, T4 Divided 1.00 A/R, T4 Divided 1.18 A/R, V-Band 0.62 A/R, V-Band 0.82 A/R, V-Band 0.82 A/R Internal Wastegate, V-Band 0.82 A/R Reverse Rotation, V-Band 1.07 A/R, V-Band 1.07 A/R Reverse Rotation |
| Part numbers | TS-19TH66B-T3063 (T3 0.63 A/R), TS-19TH66B-T3082 (T3 0.82 A/R), TS-19TH66B-T3110 (T3 1.10 A/R), TS-19TH66B-T4082 (T4 0.82 A/R), TS-19TH66B-T4082-RR (T4 0.82 A/R Reverse Rotation), TS-19TH66B-T4096 (T4 0.96 A/R), TS-19TH66B-D4084 (T4 Divided 0.84 A/R), TS-19TH66B-D4100 (T4 Divided 1.00 A/R), TS-19TH66B-D4118 (T4 Divided 1.18 A/R), TS-19TH66B-VB062 (V-Band 0.62 A/R), TS-19TH66B-VB082 (V-Band 0.82 A/R), TS-19TH66B-VB082IWG (V-Band 0.82 A/R Internal Wastegate), TS-19TH66B-VR082 (V-Band 0.82 A/R Reverse Rotation), TS-19TH66B-VB107 (V-Band 1.07 A/R), TS-19TH66B-VR107 (V-Band 1.07 A/R Reverse Rotation) |
No instructions available for this product.
