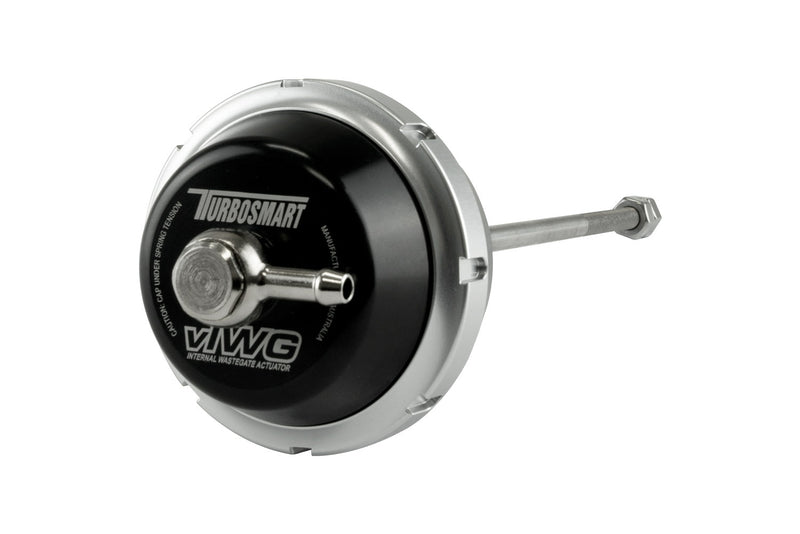

Turbosmart vIWG Vacuum Wastegate Actuator - Universal 150mm UNF - 6inHg
The Turbosmart vIWG Universal is an upgraded vacuum-operated internal wastegate actuator supplied with a 150mm long 1/4in UNF threaded rod to suit a wide range of turbochargers. Its larger effective diaphragm area and revised springs give a higher working ratio than a typical factory actuator for earlier, more sustained boost.
Note: Some fabrication is likely, including extra hardware such as a clevis and bracket. Tuning and recalibration is recommended for best results when running a higher base pressure than factory. Installation by a professional is recommended.
What's Included
- vIWG wastegate actuator
- Spring pre-fitted to the listed pressure
- Fasteners and swivel hose barb
- Turbosmart decal
Need help choosing an actuator? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications with vacuum-operated internal wastegate | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | vIWG |
| Actuation | Vacuum operated |
| Diaphragm | Silicone Nomex |
| Construction | Billet aluminium |
| Rod | Stainless steel |
| Spring adjustment | Turbosmart locking collar |
| Rod | 150mm, 1/4in UNF thread |
| Spring | 6inHg |
| Diaphragm sizes | 57mm, 76mm |
| Part numbers | TS-0604-2065 (57mm diaphragm), TS-0604-2067 (76mm diaphragm) |
