Turbosmart Turbo Oil Drain
Not sure which option fits your application? Contact Us — we're happy to help.

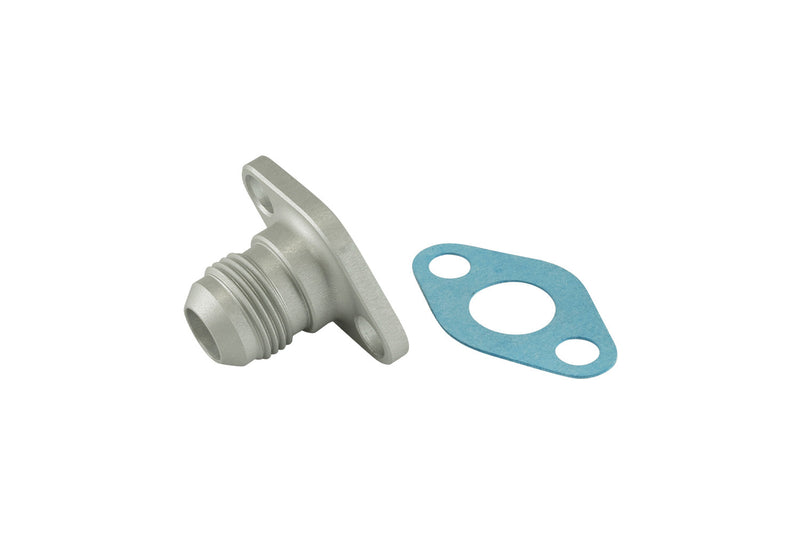

Turbosmart Turbo Oil Drain - Suits TS-1 / TS-2 - 10AN
Turbo oil drain flange with a 10AN outlet for Turbosmart TS-1 and TS-2 turbochargers. It is available for 38.1mm and 50.8mm drain bolt spacing, in standard or 75mm extended length, in silver or black.
Note: Choose the size by the bolt spacing of your turbo oil drain flange (38.1mm / 1.5" or 50.8mm / 2.0"). An oil drain gasket is sold separately. Installation by a professional is recommended.
Need help choosing an oil drain? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Turbosmart TS-1 / TS-2 turbochargers | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Type | Turbo oil drain |
| Outlet | 10AN |
| Bolt spacing | 38.1mm, 50.8mm |
| Length | Standard, 75mm extended |
| Colours | Silver, Black |
| Part numbers | TS-199-3005 (38.1mm Standard Silver), TS-199-3006 (38.1mm Standard Black), TS-199-3007 (38.1mm 75mm Extended Silver), TS-199-3008 (38.1mm 75mm Extended Black), TS-199-3009 (50.8mm Standard Silver), TS-199-3010 (50.8mm Standard Black), TS-199-3011 (50.8mm 75mm Extended Silver), TS-199-3012 (50.8mm 75mm Extended Black) |
No instructions available for this product.
