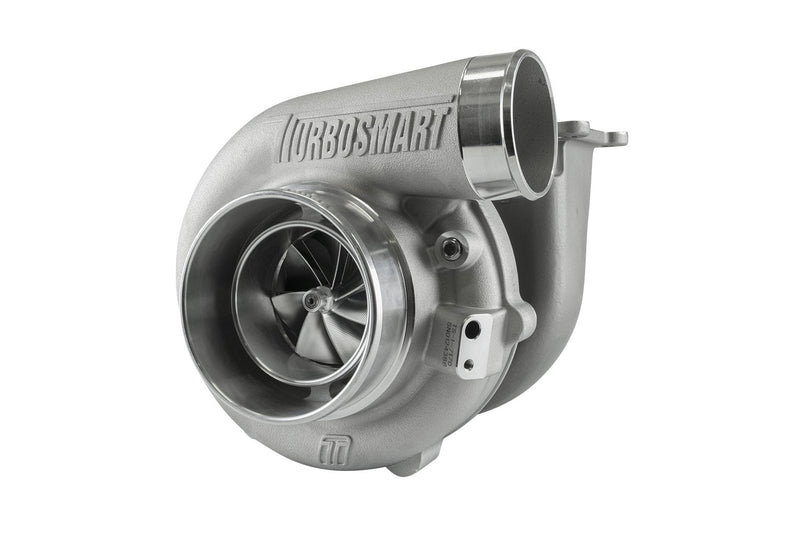

Turbosmart TS-1 7170 Kompact Turbocharger - B-Frame Oil Cooled
The Turbosmart TS-1 7170 Kompact is an oil cooled B-Frame performance turbocharger with a 71mm compressor inducer and 70mm turbine exducer. It pairs a 7+7 splitter-blade compressor wheel and Inconel turbine wheel with Turbosmart's proprietary dual ceramic bearing system for a low rotating mass and sharp transient response. Turbine housings are lightweight investment-cast 310S stainless steel and the compressor cover is aluminium.
Note: Choose the turbine housing to suit your manifold - T3, T4, T4 divided and V-band inlet options are listed, including reverse rotation versions. Externally wastegated versions need a separate external wastegate. Turbosmart rates the 7170 at 850-1040hp. Installation by a professional is recommended.
What's Included
- Turbosmart TS-1 7170 Kompact turbocharger with the selected turbine housing
- Turbine outlet V-band weld flange and V-band clamp
- Turbine inlet V-band weld flange and V-band clamp (V-Band housings)
- Oil drain gasket
Need help choosing a turbo? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | TS-1 (oil cooled) |
| Frame | B-Frame (Kompact) |
| Compressor inducer | 71mm |
| Compressor inlet | 4" / 101.6mm |
| Turbine exducer | 70mm |
| Turbine housing options | T3 1.10 A/R, T4 0.82 A/R, T4 0.82 A/R Reverse Rotation, T4 0.96 A/R, T4 Divided 0.84 A/R, T4 Divided 1.00 A/R, T4 Divided 1.18 A/R, V-Band 0.96 A/R, V-Band 0.96 A/R Reverse Rotation, V-Band 1.07 A/R, V-Band 1.07 A/R Reverse Rotation |
| Turbine inlet (V-Band housings) | 0.96 A/R: V-Band 3.00"; 1.07 A/R: V-Band 2.25" |
| Turbine outlet | V-Band (3.00") |
| Cooling | Oil |
| Bearing system | Proprietary dual ceramic bearing system |
| Compressor wheel | 7+7 splitter blade, 2618 aluminium |
| Turbine wheel | Inconel |
| Turbine housing | 310S stainless steel, investment cast |
| Compressor cover material | Aluminium |
| Centre housing | Integrated iron backplate |
| Balancing | VSR speed balanced |
| Horsepower rating (Turbosmart) | 850-1040hp |
| Part numbers | TS-1-7170B-T3110E (T3 1.10 A/R), TS-1-7170B-T4082E (T4 0.82 A/R), TS-1-7170B-T4082E-RR (T4 0.82 A/R Reverse Rotation), TS-1-7170B-T4096E (T4 0.96 A/R), TS-1-7170B-D4084E (T4 Divided 0.84 A/R), TS-1-7170B-D4100E (T4 Divided 1.00 A/R), TS-1-7170B-D4118E (T4 Divided 1.18 A/R), TS-1-7170B-VB096E (V-Band 0.96 A/R), TS-1-7170B-VR096E (V-Band 0.96 A/R Reverse Rotation), TS-1-7170B-VB107E (V-Band 1.07 A/R), TS-1-7170B-VR107E (V-Band 1.07 A/R Reverse Rotation) |
