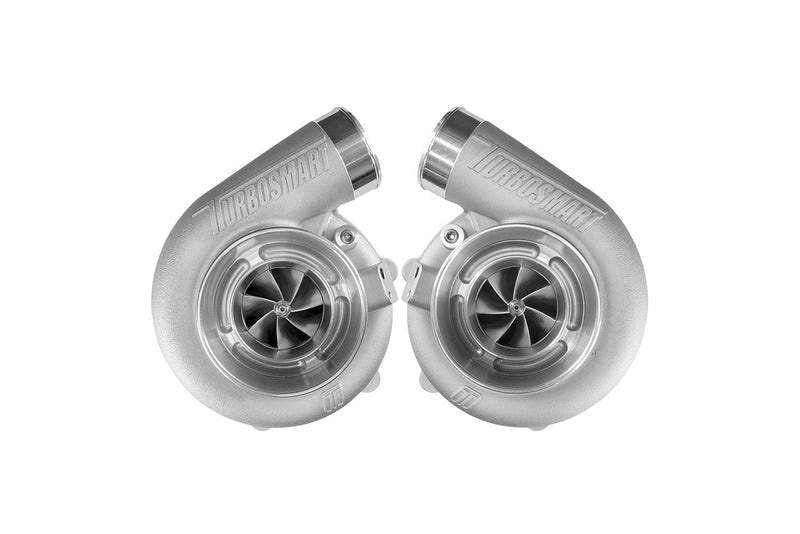

Turbosmart TS-1 6870 Mirror Twin Turbo Package - B-Frame Oil Cooled - V-Band 0.96 A/R
The Turbosmart TS-1 6870 Mirror Twin package pairs one standard rotation and one reverse rotation TS-1 6870 turbocharger, so a twin-turbo setup can run mirror-image turbos on each bank. Each turbo is oil cooled, with a 68mm compressor inducer, 70mm turbine exducer, Turbosmart's dual ceramic bearing system and V-band turbine housings.
Note: Both turbos use V-band turbine inlet and outlet connections. Turbosmart rates each turbo at 850-990hp. Installation by a professional is recommended.
What's Included
- 1 x Turbosmart TS-1 6870 turbocharger, standard rotation
- 1 x Turbosmart TS-1 6870 turbocharger, reverse rotation
- Weld flanges, V-band clamps and gaskets for each turbo
Need help choosing a turbo package? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Universal | Custom twin turbo applications | - | - |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Turbosmart |
| Series | TS-1 (oil cooled) |
| Frame | B-Frame |
| Package | 1 x standard rotation + 1 x reverse rotation turbo |
| Compressor inducer | 68mm |
| Compressor inlet | 4" / 101.6mm |
| Turbine exducer | 70mm |
| Turbine housing | V-Band 0.96 A/R |
| Turbine outlet | V-Band (3.00") |
| Bearing system | Proprietary dual ceramic bearing system |
| Horsepower rating (Turbosmart, per turbo) | 850-990hp |
| Part numbers | TS-1-6870B-VB096E-MT (V-Band 0.96 A/R) |
